FLTB-4LA IC908

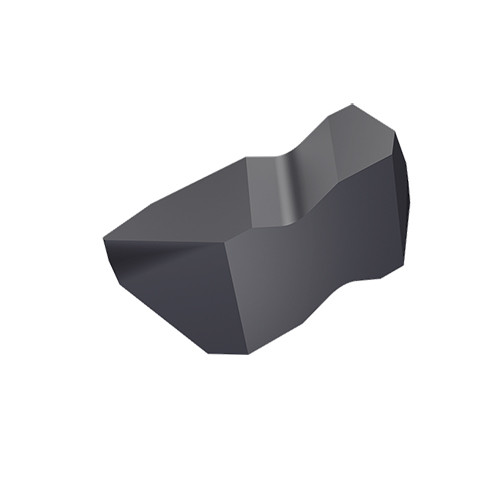

Double-ended, precision flat top threading inserts for 7° lead
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

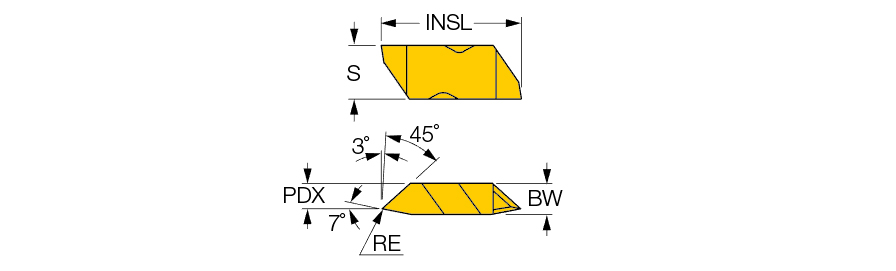

| Corner Radius (RE) | 0.2 mm | Threads per Inch Maximum (TPIX) | 6 |
| Insert Thickness (S) | 11.51 mm | Threads per Inch Minimum (TPIN) | 4 |
| Grade | IC908 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | ABUT |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Unit | M |
Product Features
| Family Description | Double-ended, precision flat top threading inserts for 7° lead | FamilyName | AMERICAN STANDARD BUTTRESS THREADING FLTB-A |
| Remarks | For user guide, click on More Info DMIN according to related boring bar Internal tolerance: ANSI/ASME B1.9 - Class 2B External tolerance: ANSI/ASME B1.9 - Class 2A | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
AMERICAN STANDARD BUTTRESS THREADING FLTB-A
BrandName
Iscar
