FLDC-3-530I IC908

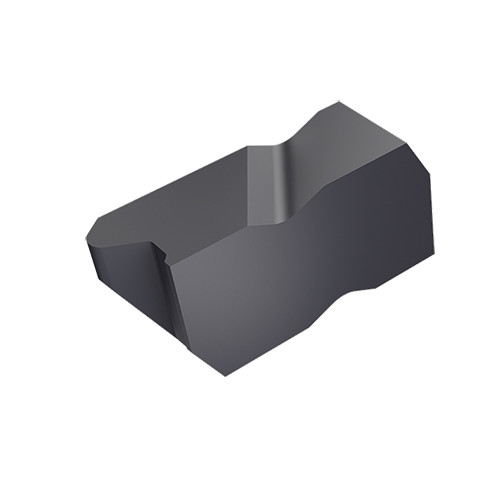

Double-ended, precision flat top threading inserts for internal API Rotary Shoulder Connection applications
| Thread Standard | THFT | | Application | | Threading (Int.) | |
| Threads per Inch (TPI) | 5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

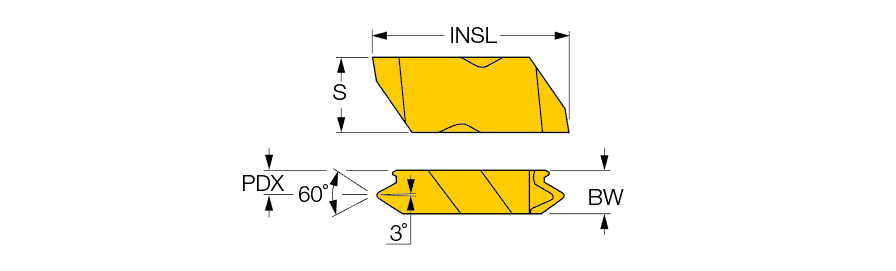

| Insert Thickness (S) | 8.74 mm | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | API |
| Cutting Direction (HAND) | Right Hand | Unit | M |
Product Features
| Family Description | Double-ended, precision flat top threading inserts for internal API Rotary Shoulder Connection applications | FamilyName | API THREADING FLDC-I |
| Remarks | API Spec7 Internal & External tolerance: API Spec7 | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
API THREADING FLDC-I
BrandName
Iscar
