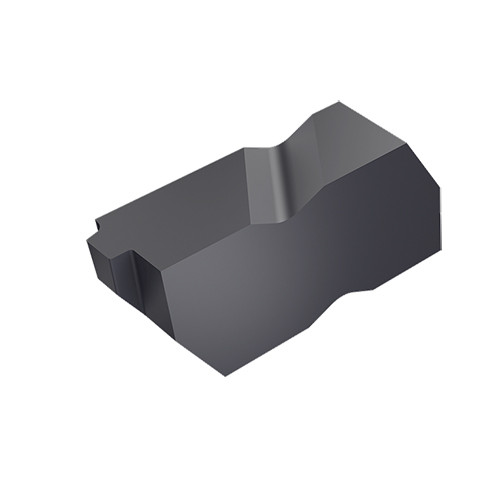

FLDC-3-5B75I IC908
Double-ended, precision flat top threading inserts for internal API BUTTRESS applications
| Thread Standard | THFT | | Application | | Threading (Int.) | |
| Threads per Inch (TPI) | 5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 8.74 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | BUT |
| Cutting Edge Material | Carbide | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double-ended, precision flat top threading inserts for internal API BUTTRESS applications | FamilyName | API BUTTRESS THREADING FLDC-B-I |
| Remarks | API Spec STD Internal & External tolerance: 5B | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
API BUTTRESS THREADING FLDC-B-I
BrandName
Iscar
