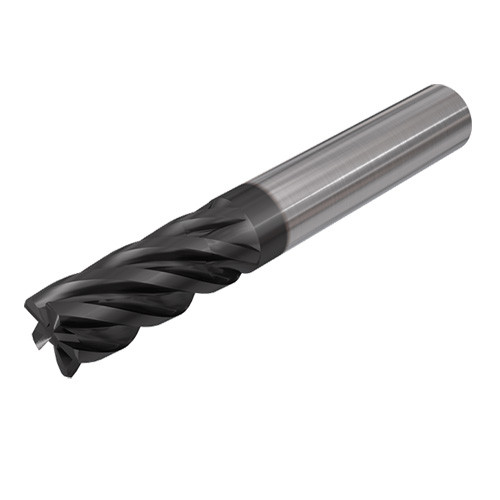

EC-H5M 08-16C08CFR0.5-63 IC900
5 flute endmills with different helix and variable pitch for chatter dampening. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to1XD.

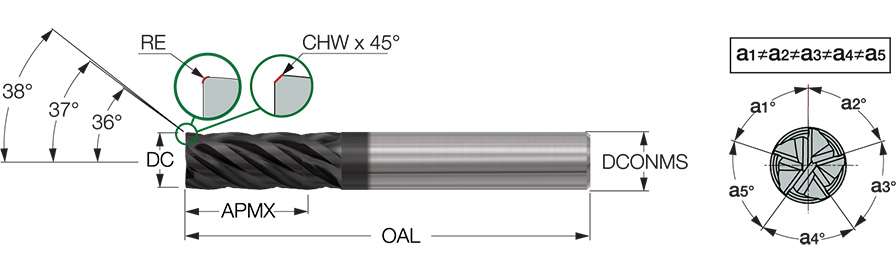

| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Ramping Angle Maximum (RMPX) | 2 Degrees |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | IC900 |
| Overall Length (OAL) | 63 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| End Shape | Corner Radius | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | 5 flute endmills with different helix and variable pitch for chatter dampening. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to1XD. | FamilyName | EC-H5M-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0480
Name
Square & Corner Radius End Mills
FamilyName
EC-H5M-CF
BrandName
Iscar
