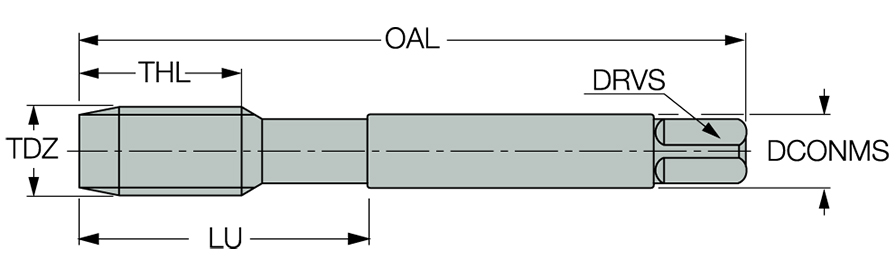

| Thread Size | M3 × 0.5 | Connection Diameter Machine Side (DCONMS) | 3.5 mm |
| Thread Diameter Size (TDZ) | M3 | Thread Cutting Part Length (THL) | 10 mm |
| Thread Pitch (TP) | 0.5 mm | Drive Size (DRVS) | 2.7 mm |
| Usable Length (LU) | 18 mm | Measurement Type | Metric |
| Overall Length (OAL) | 56 mm | Grade | PMTC |
| Flute Count (NOF) | 3 | Body Material | HSS |

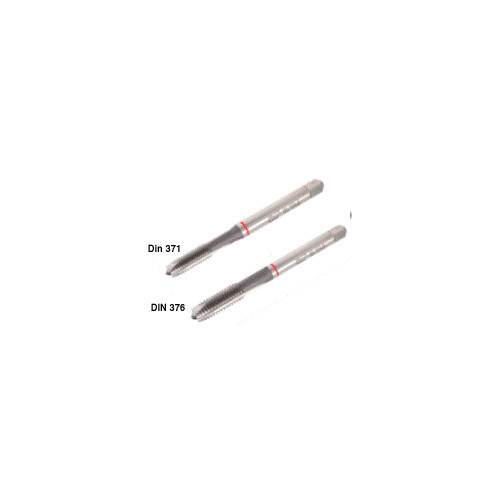

| Tool Type | Machine Blind Hole Taps | Unit | M |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| COO | Hungary |
Shipping Info
Weight per item
0.0120
