TPSN M-6X1.0-S PMTC

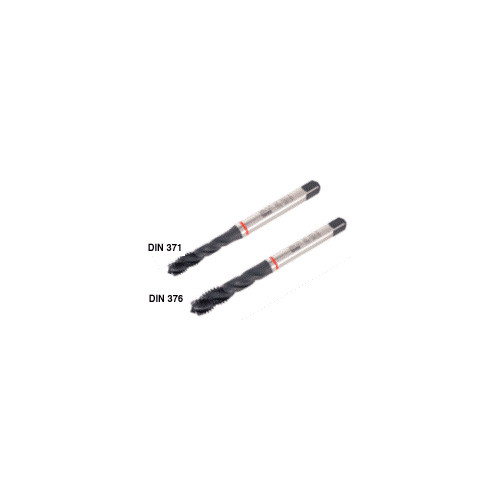

PM Right-Hand 40° Spiral Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Stainless Steel

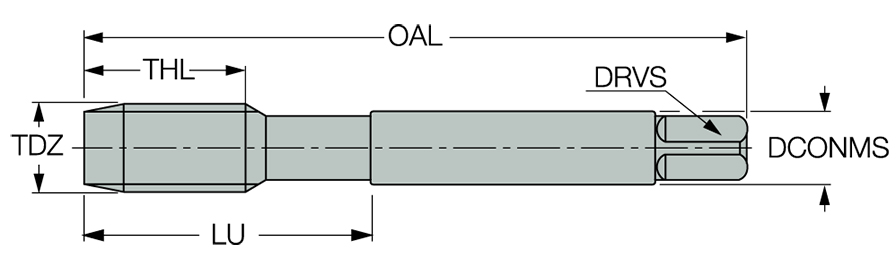

| Thread Diameter Size (TDZ) | M6 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Grade | PMTC |
| Thread Cutting Part Length (THL) | 12 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Usable Length (LU) | 30 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Drive Size (DRVS) | 4.9 mm |
| Flute Count (NOF) | 3 | Thread Size | M6 × 1 |
| Standard | DIN 371 | Unit | M |
Product Features
| Family Description | PM Right-Hand 40° Spiral Flute Machine Taps - ISO Metric Coarse Threads, According to DIN 13, for Stainless Steel | COO | Hungary |
Shipping Info
Weight per item
0.0110
