MD-DR-DH 400 070707-06

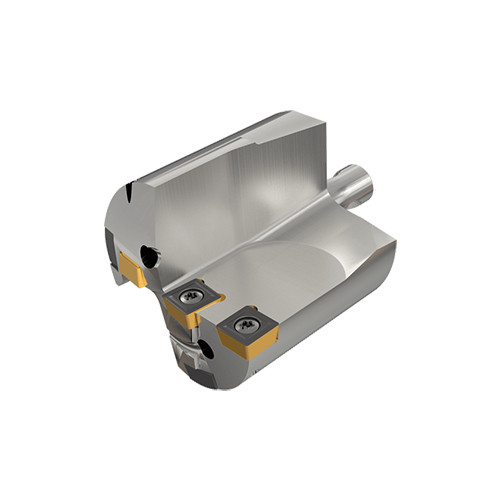

Exchangeable drilling heads with guide pads carry square inserts.

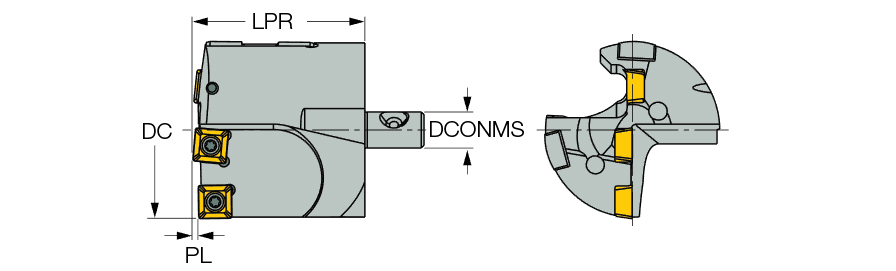

| Cutting Diameter (DC) | 40 mm | Unit | M |
| Measurement Type | Metric | Master Insert Identification (MIID) | SOMX 07 |
| Connection Diameter Machine Side (DCONMS) | 6.9 mm | Protruding Length (LPR) | 40 mm |
| Application | | Drilling | | Point Length (PL) | 1 mm |
| Body Material | Steel |
Product Features
| Family Description | Exchangeable drilling heads with guide pads carry square inserts. | COO | Israel |
Shipping Info
Weight per item
0.2920
