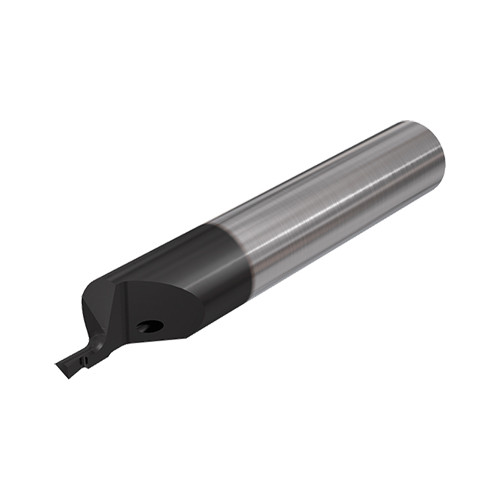

PICJ RF25D6T5.0-20 IC908
PICCO-JETCUT inserts with an internal coolant channel for grooving along shaft Dmin 6 mm
| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 2.5 mm | Max. Face Grooving Feed (ffg(max)) | 0.06 mm/rev |
| Cutting Depth Maximum (CDX) | 5 mm | Min. Face Grooving Feed (ffg(min)) | 0.02 mm/rev |
| Overall Length (OAL) | 35 mm | Axial Groove Outside Diameter Minimum (DAXN) | 6 mm |
| Cutting Edge Material | Carbide | Front End Width (a) | 5.2 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Overhang Minimum (OHN) | 20 mm |
| Application | | Face Grooving Along Shaft | | Unit | M |
Product Features
| Family Description | PICCO-JETCUT inserts with an internal coolant channel for grooving along shaft Dmin 6 mm | FamilyName | PICJ RF-T-20 (Grooving Along Shaft) |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request All carbide inserts are with sharp corners PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO types holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0130
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICJ RF-T-20 (Grooving Along Shaft)
BrandName
Iscar
