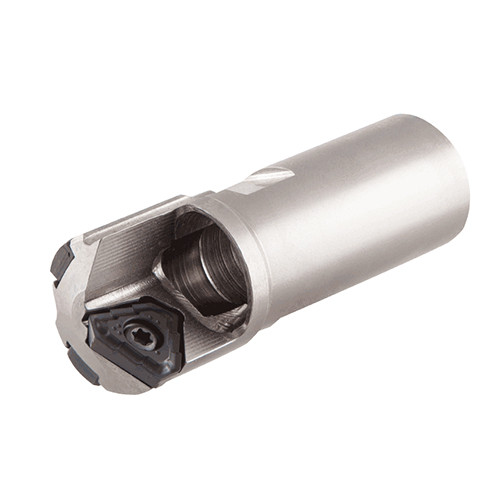

DSD-IF 15.51-15.99-FT
Deep single tube drills with internal Single-Start Thread Connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and for high feed

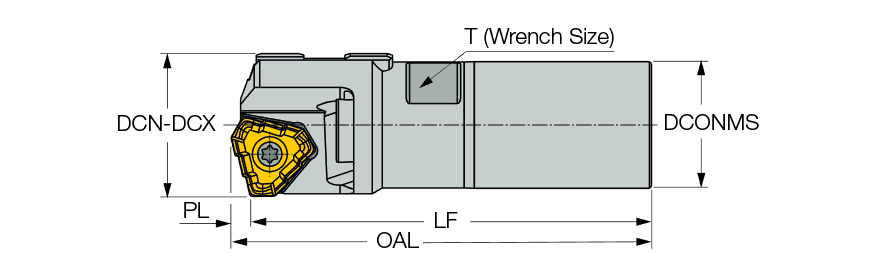

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 15.51 mm |
| Connection Diameter Machine Side (DCONMS) | 12.4 mm | Cutting Diameter Maximum (DCX) | 15.99 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Functional Length (LF) | 57 mm | Body Material | Steel |
| Overall Length (OAL) | 59 mm | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and for high feed | COO | Israel |
| Remarks | Note: Each item in the attached catalog page represents a diameter range Inserts and guide pads to be ordered separately Ordering example: DSDIF 18.50FT For suitable pads and inserts see more info. |
