| Cutting Width Minimum (CWN) | 0.5 mm | Head Length (LH) | 23.5 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Overall Length (OAL) | 108.5 mm |
| Cutting Depth Maximum (CDX) | 6.4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Functional Width (WF) | 23.5 mm | Unit | M |
Product Features

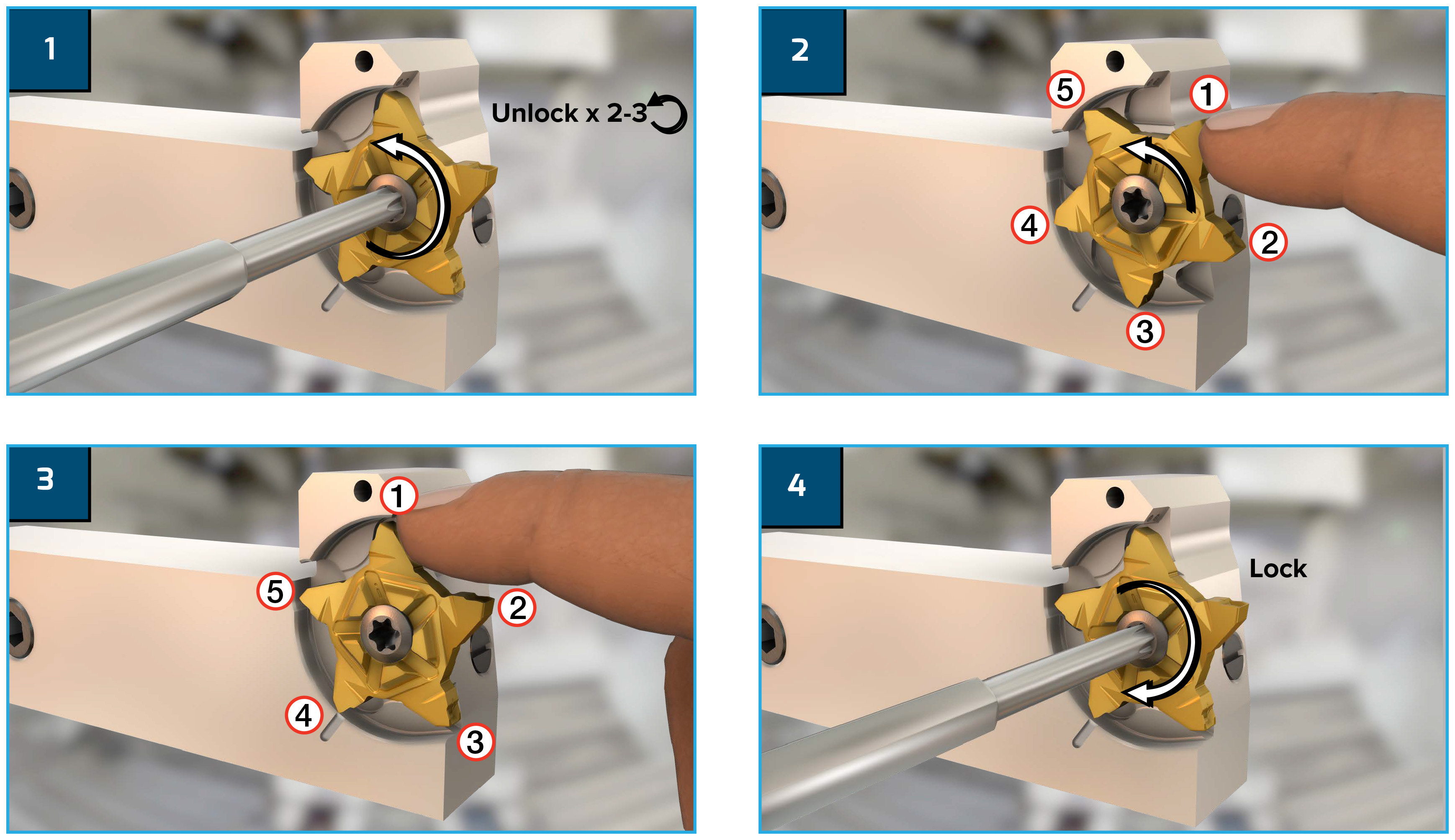

| Family Description | Grooving, parting, and recessing tools with safety lock clamping for five cutting-edged pentagonal-shaped inserts. SAFE-T-LOCK clamping mechanism with superior insert stability for fast and precise indexing. | FamilyName | PCHR/L-24-JHP-QC/MC |
| Remarks | For more details click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5820
Name
Groove/Turn Indexable Holders
FamilyName
PCHR/L-24-JHP-QC/MC
BrandName
Iscar
LocalField3
8466100130
