BHEI MB20-20-40
Fine boring head used on the MB modular boring system. .0004″ direct diametric adjustment and .00008″ by a vernier scale.

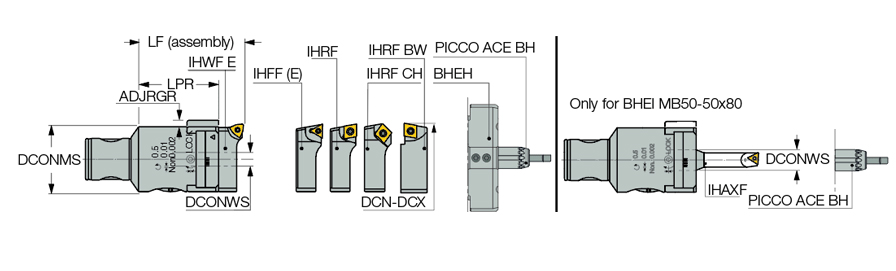

| Cutting Diameter Minimum (DCN) | 0.866″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1.181″ | Rotational Speed Maximum (RPMX) | 12000 rpm |
| Functional Length (LF) | 1.575″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Unit | I |
Product Features
| Family Description | Fine boring head used on the MB modular boring system. .0004″ direct diametric adjustment and .00008″ by a vernier scale. | COO | Italy |
| Remarks | Click on individual item, then on More Info to see split view of its spare parts. |
Shipping Info
Weight per item
0.2800
