DCN 100-030-08-3D-PICCO

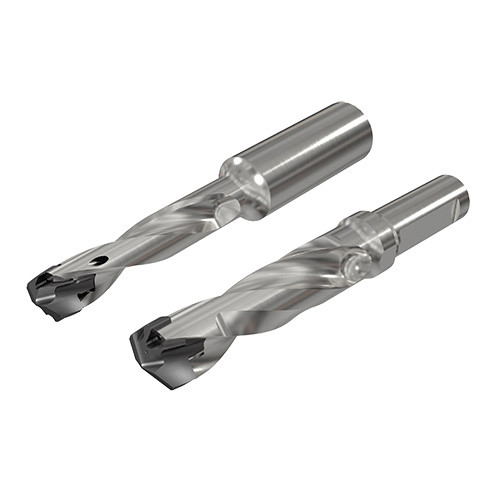

SUMOCHAM 3xD drills with exchangeable heads, PICCO connection, and internal coolant holes. The DNC-PICCO drill can accommodate any of the SUMOCHAM drilling heads for various applications and materials

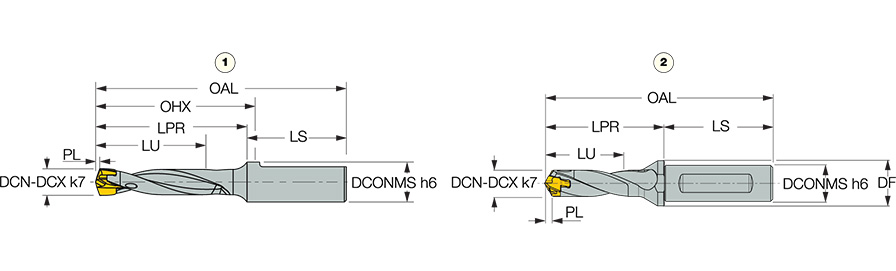

| Usable Length (LU) | 31.5 mm | Shank Length (LS) | 20 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Master Insert Identification (MIID) | ICP 100 |
| Insert Seat Size Code (SSC) | 10.0 | Point Length (PL) | 1.5 mm |
| Cutting Diameter Minimum (DCN) | 10 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 10.49 mm | Flange Diameter (DF) | 11 mm |
| Protruding Length (LPR) | 46.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 66.2 mm | Unit | M |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, PICCO connection, and internal coolant holes. The DNC-PICCO drill can accommodate any of the SUMOCHAM drilling heads for various applications and materials | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.0480
