| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Master Insert Identification (MIID) | MDR ANMU 1204... |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |

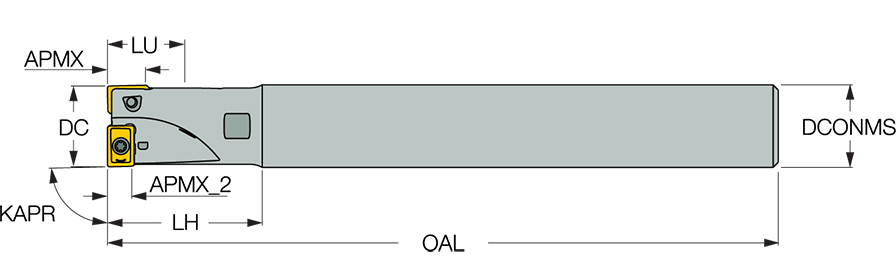

| Depth of Cut Maximum (APMX) | 11.5 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 25 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Tool Type | 90° indexable endmills |
| Overall Length (OAL) | 150 mm | Unit | M |
Product Features
| Family Description | Multi-function endmill cutters | FamilyName | MDR D-C-AN |
| Remarks | When drilling holes deeper than 5 mm, it is recommended to use the pecking method (G83) For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5140
Name
Shell Mills
FamilyName
MDR D-C-AN
BrandName
Iscar
