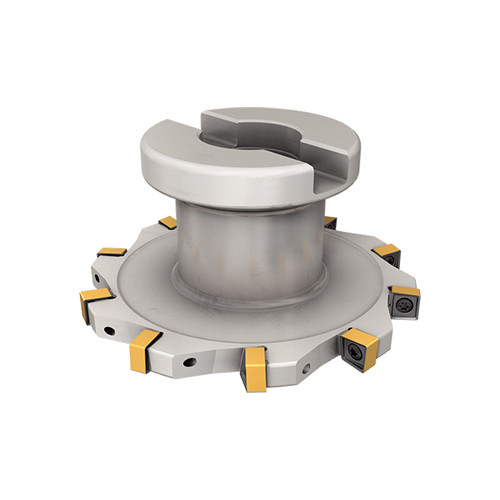

FDN D3.0-.275-06-XN06
Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges.

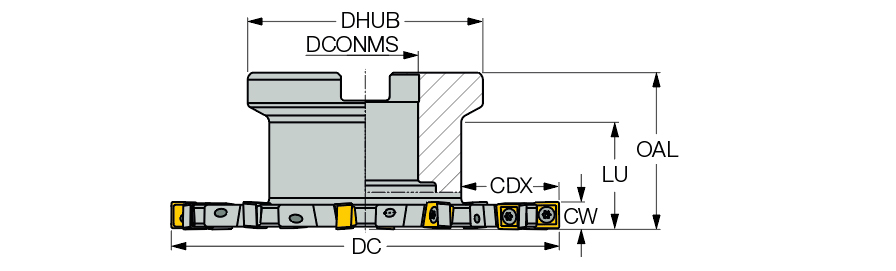

| Cutting Diameter (DC) | 3″ | Overall Length (OAL) | 1.575″ |
| Cutting Item Count (CICT) | 10 | Master Insert Identification (MIID) | XNMU 0603... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |
| Depth of Cut Maximum (APMX) | 0.275″ | Arbor Style | A |
| Cutting Depth Maximum (CDX) | 0.846″ | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 1.85″ | Measurement Type | Inch |
| Usable Length (LU) | 1.102″ | Body Material | Steel |
| Flute Count (NOF) | 6 | Unit | I |
Product Features
| Family Description | Full slot flange type, slotting cutters carrying XNMU 0603 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | FDN-XN06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.0384
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-XN06
BrandName
Iscar
