IHP 225-BD IC954
Exchangeable drilling heads for DCN drills for machining construction beams and structural steel materials

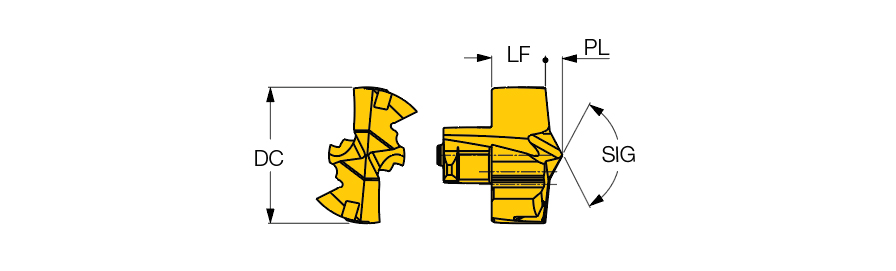

| Cutting Diameter (DC) | 22.5 mm | Measurement Type | Metric |
| Applicable Material | | Steel | | Point Length (PL) | 2.75 mm |
| Application | | Drilling | | Point Angle (SIG) | 128 Degrees |
| Grade | IC954 | Coating | TiAlN |
| Tool Type | Drilling Heads | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 22.0 | Unit | M |
| Functional Length (LF) | 8.7 mm |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills for machining construction beams and structural steel materials | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
Weight per item
0.0370
