KIT BHF MB80-80 6-220

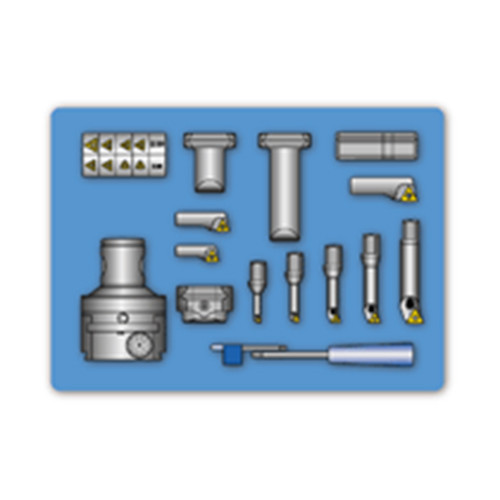

Contains a fine boring head with direct increment diametric adjustment to a precision of 0.002 mm and various boring tools and inserts. Each kit enables boring within the specified diameter range.

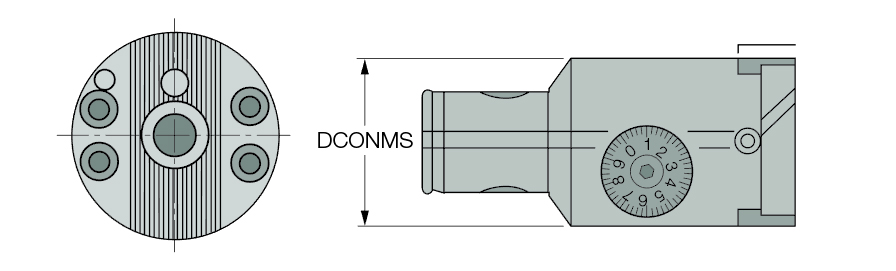

| Connection Diameter Machine Side (DCONMS) | 80 mm | Body Material | Steel |
| Shank Size (SS) | MB80 | Cutting Diameter Minimum (DCN) | 6 mm |
| Application | | Boring Kits | ITSBORE System | | Cutting Diameter Maximum (DCX) | 220 mm |
| Tool Type | MB Fine boring heads | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Contains a fine boring head with direct increment diametric adjustment to a precision of 0.002 mm and various boring tools and inserts. Each kit enables boring within the specified diameter range. | COO | Italy |

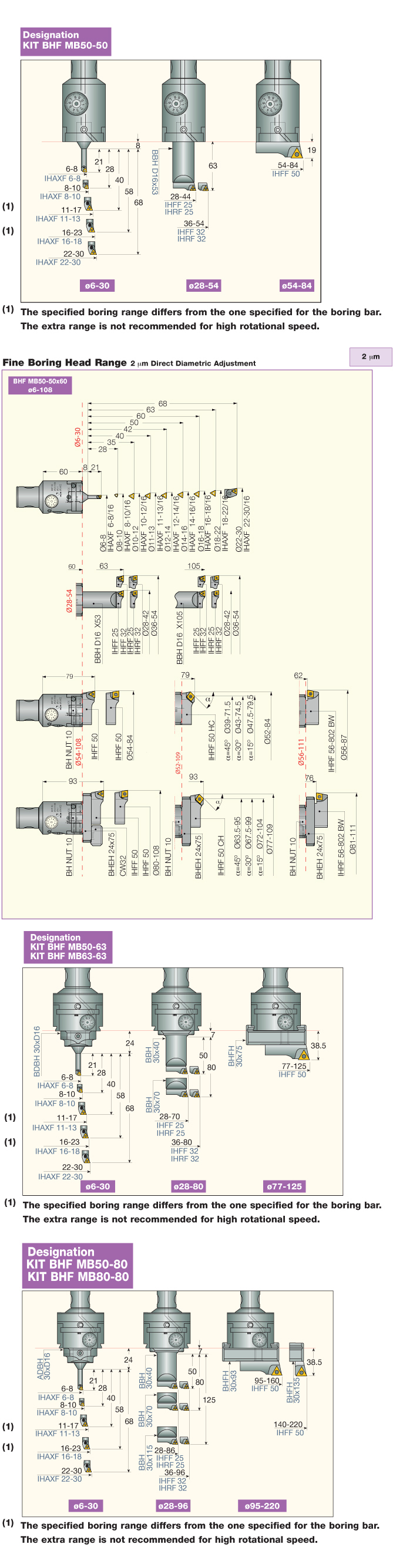

| Remarks | For kit contents and boring options, click on More Info |
Shipping Info
Weight per item
6.5430
