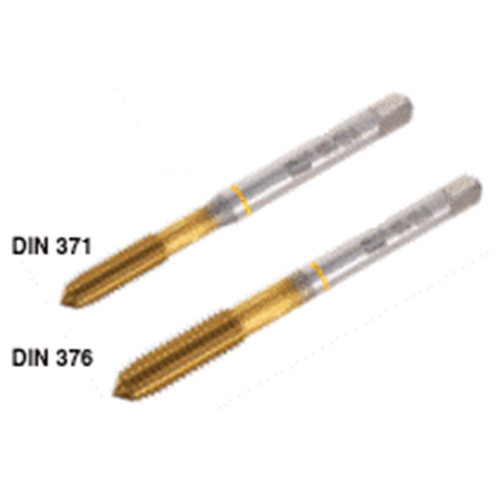

TPF M-14X2.0-F HETI
HSS cold forming machine taps - ISO metric coarse threads, according to DIN 13.

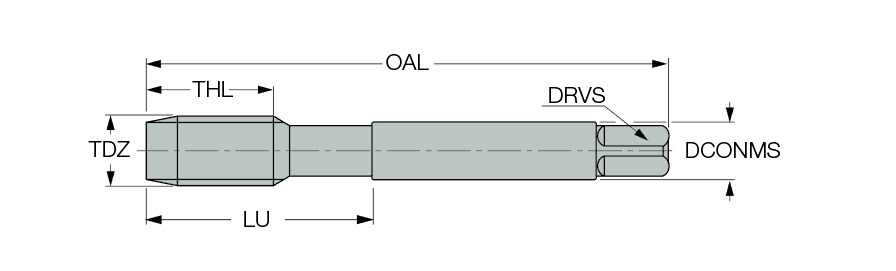

| Tool Type | Machine Blind Hole Taps | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M14 | Coating | TiN |
| Thread Pitch (TP) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 110 mm | Cutting Edge Material | HSS |
| Thread Cutting Part Length (THL) | 26 mm | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Thread Size | M14 × 2 |
| Flute Count (NOF) | 5 | Body Material | HSS |
| Tap Standard | DIN 376 | Thread Form Type (THFT) | M60 |
| Thread Standard | THFT | | Unit | M |
Product Features
| Family Description | HSS cold forming machine taps - ISO metric coarse threads, according to DIN 13. | COO | Korea |
Shipping Info
Weight per item
0.0890
