TPG M-20X2.5-H HE

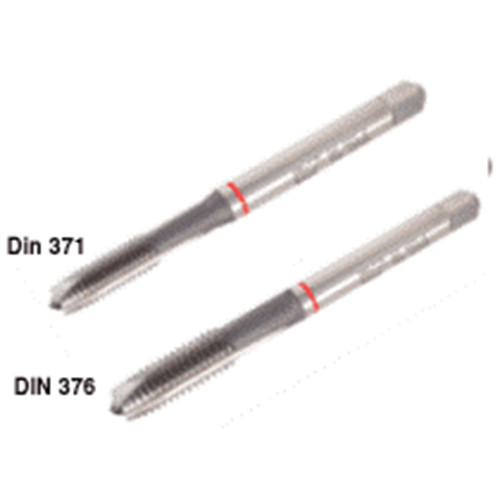

DIN 13 HSS gun point machine taps - ISO metric coarse threads, for hardened steel and high temperature alloys.
| Thread Standard | THFT | | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |

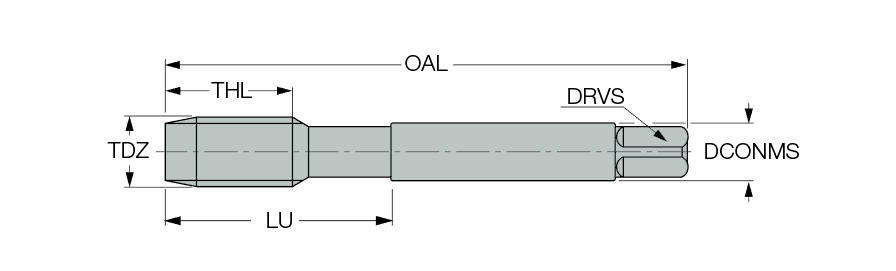

| Thread Size | M20 × 2.5 | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Diameter Size (TDZ) | M20 | Thread Cutting Part Length (THL) | 32 mm |
| Thread Pitch (TP) | 2.5 mm | Drive Size (DRVS) | 12 mm |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Coating | Uncoated | Grade | HE |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | M60 |
| Tool Type | Machine Blind Hole Taps | Unit | M |
Product Features
| Family Description | DIN 13 HSS gun point machine taps - ISO metric coarse threads, for hardened steel and high temperature alloys. | COO | Korea |
Shipping Info
Weight per item
0.2260
