TPS M-2X0.4-N HEST

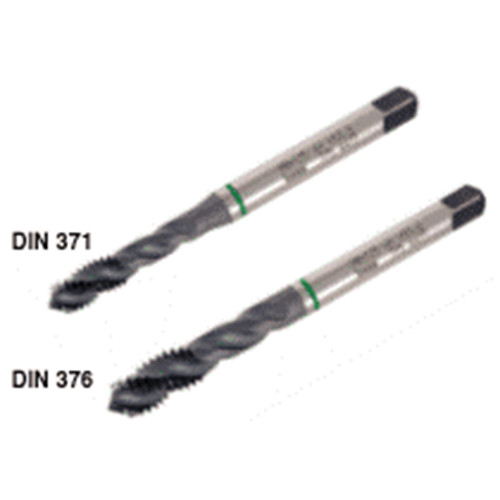

HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for low alloyed steel.

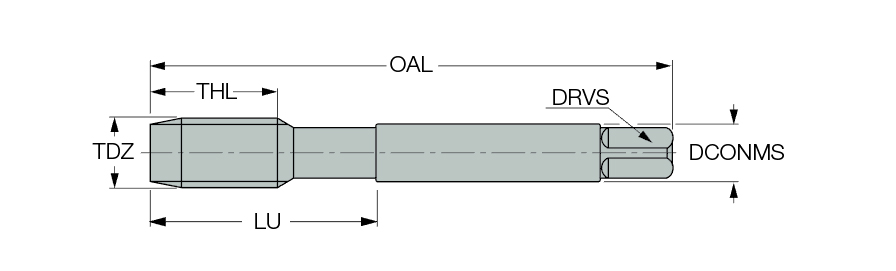

| Thread Diameter Size (TDZ) | M2 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.4 mm | Coating | Steam tempered |
| Thread Standard | THFT | | Measurement Type | Metric |
| Overall Length (OAL) | 45 mm | Grade | HEST |
| Thread Cutting Part Length (THL) | 8 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 2.1 mm |
| Cutting Edge Material | HSS | Thread Size | M2 × 0.4 |
| Standard | DIN 371 | Unit | M |
Product Features
| Family Description | HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for low alloyed steel. | COO | Korea |
| Remarks | The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Weight per item
0.0040
