TPG UNF-3/8-24-M HEST
HSS gun point machine taps unified fine threads for a wide range of materials.

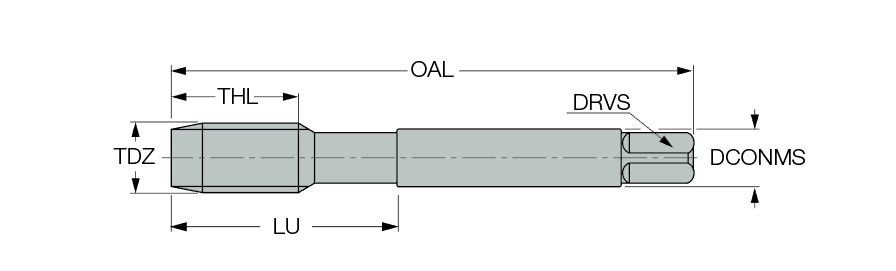

| Thread Diameter Size (TDZ) | 3/8″ | Standard | DIN 371 |
| Thread Pitch (TP) | 1.041 mm | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 24 Threads/" | Coating | Steam tempered |
| Thread Standard | THFT | | Drive Size (DRVS) | 7 mm |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 18 mm | Grade | HEST |
| Usable Length (LU) | 39 mm | Thread Size | 3/8 - 24 |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | UN60 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Unit | M |
| Cutting Edge Material | HSS |
Product Features
| Family Description | HSS gun point machine taps unified fine threads for a wide range of materials. | COO | Korea |
Shipping Info
Weight per item
0.0480
