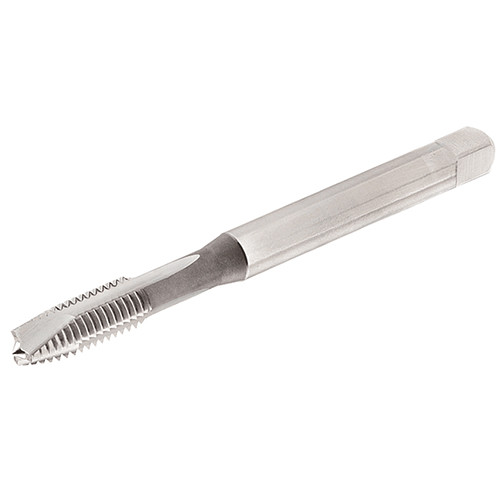

TPG MF-12X1.5-M HE
DIN 13 HSS gun point machine taps - ISO metric fine threads for a wide range of materials.

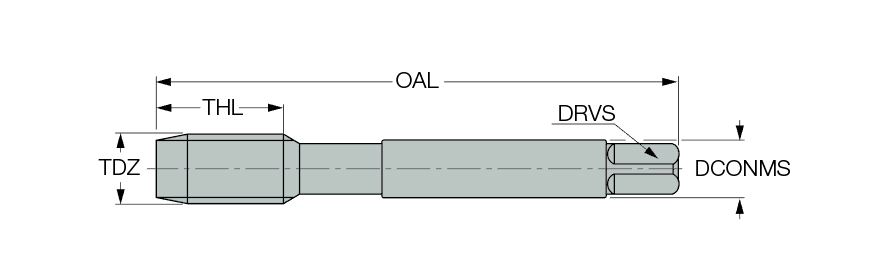

| Thread Diameter Size (TDZ) | M12 | Tool Type | Machine Through Hole Taps |
| Thread Pitch (TP) | 1.5 mm | Coating | Uncoated |
| Thread Standard | THFT | | Drive Size (DRVS) | 7 mm |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 22 mm | Grade | HE |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Thread Size | M12 × 1.5 |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Unit | M |
| Standard | DIN 374 |
Product Features
| Family Description | DIN 13 HSS gun point machine taps - ISO metric fine threads for a wide range of materials. | COO | Korea |
Shipping Info
Weight per item
0.0570
