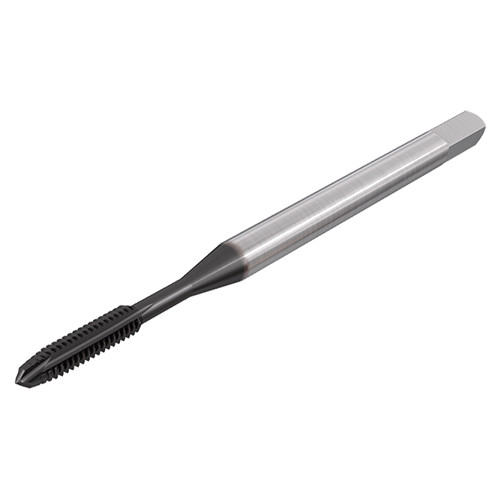

TPG M-4.5X0.75-W HE
HSS-E 5% Co (M35) gun point machine taps according to DIN 13 for ISO Metric coarse threads on steel with good machinability.

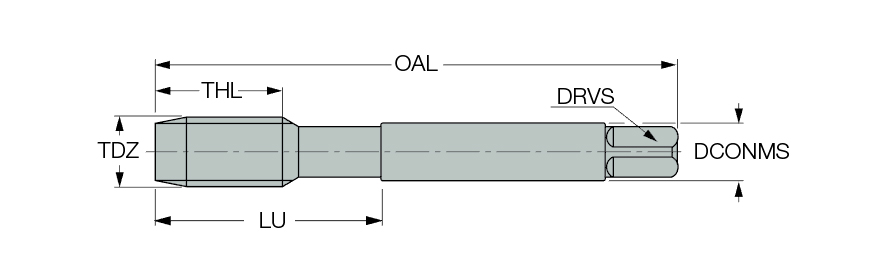

| Thread Diameter Size (TDZ) | M4.5 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 0.75 mm | Coating | Uncoated |
| Thread Standard | THFT | | Drive Size (DRVS) | 4.9 mm |
| Overall Length (OAL) | 70 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 14 mm | Grade | HE |
| Usable Length (LU) | 25 mm | Thread Size | M4.5 × 0.75 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Unit | M |
Product Features
| Family Description | HSS-E 5% Co (M35) gun point machine taps according to DIN 13 for ISO Metric coarse threads on steel with good machinability. | COO | Korea |
Shipping Info
Weight per item
0.0130
