SCD 008-003-030 AP4 IC908
DIN 6537 solid carbide drills without coolant holes, drilling depth 4xD

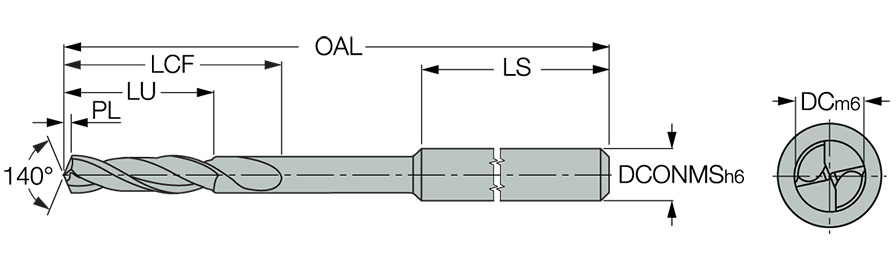

| Drill Bit Size / Cutting Diameter (DC) | 0.8 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.8 mm | Grade | IC908 |
| Length Group | 4xD | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 3.2 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 4.8 mm |
| Application | | Drilling | | Overall Length (OAL) | 46 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Number of Teeth | 2 | Body Material | Carbide |
| Shank Length (LS) | 37.2 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | DIN 6537 solid carbide drills without coolant holes, drilling depth 4xD | COO | Korea |
Shipping Info
Weight per item
0.0120
