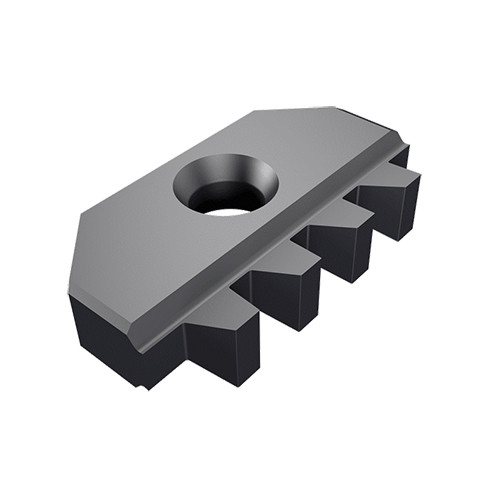

MT LNHU 3005 I6ACME 908
Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile thread milling inserts for feed screws.

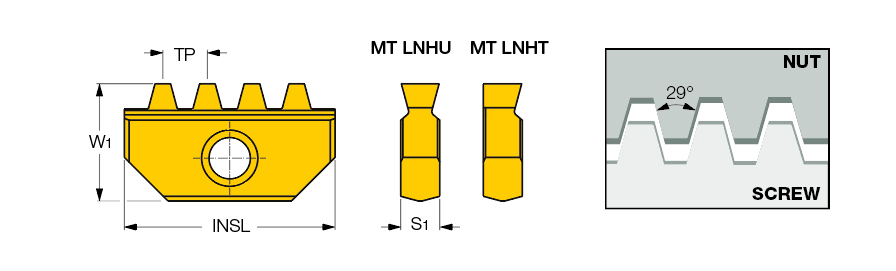

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 4.233 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 6 | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Insert Width (W1) | 16.7 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 5.6 mm | Thread Form Type (THFT) | AC29 |
| Application | | Internal Thread Milling | | Thread Type (TTP_DF2) | INT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile thread milling inserts for feed screws. | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
Weight per item
0.0360
