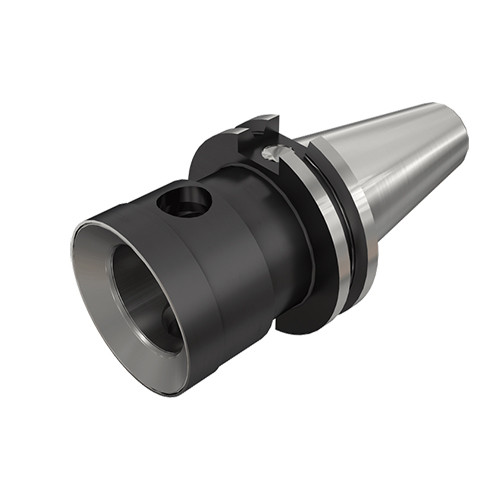

CATM 50 MB50
MB modular boring connection system with CATM Form AD ANSIB5.5 Caterpillar tapered shanks and metric pull stud threads.

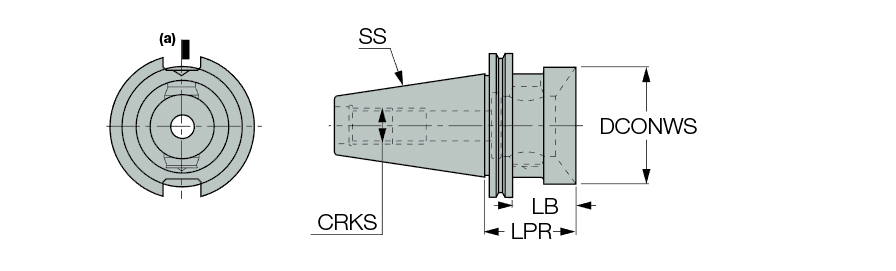

| Shank Size (SS) | 50 | Body Material | Steel |
| Protruding Length (LPR) | 48 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Tool Type | DIN 69871 |
| Connection Size (CSI) | MB50 | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | MB modular boring connection system with CATM Form AD ANSIB5.5 Caterpillar tapered shanks and metric pull stud threads. | COO | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Weight per item
3.0520
