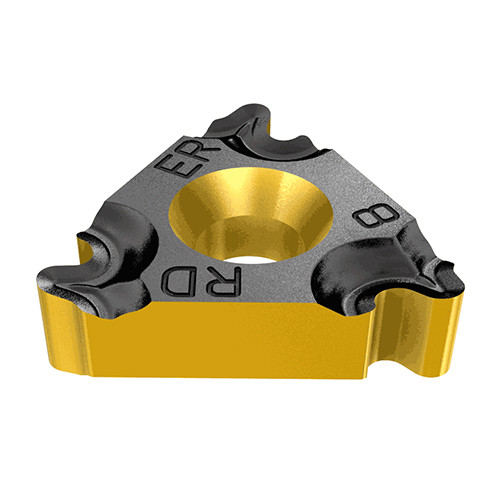

22ER 6 RND IC908
External round laydown threading inserts, for firefighting and food industry pipe couplings (DIN 405) .
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

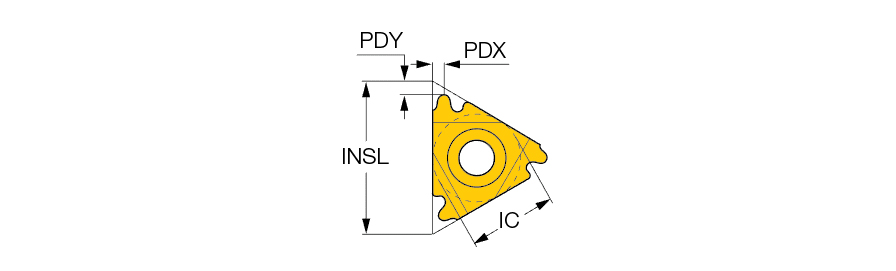

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 1.01 mm | Body Material | Carbide |
| Grade | IC908 | Thread Form Type (THFT) | RN30 |
| Coating | TiAlN | Unit | M |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 1.5 mm |
| Application | | External Threading | |
Product Features
| Family Description | External round laydown threading inserts, for firefighting and food industry pipe couplings (DIN 405) . | FamilyName | ER/L-RND |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0128
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-RND
BrandName
Iscar
