| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

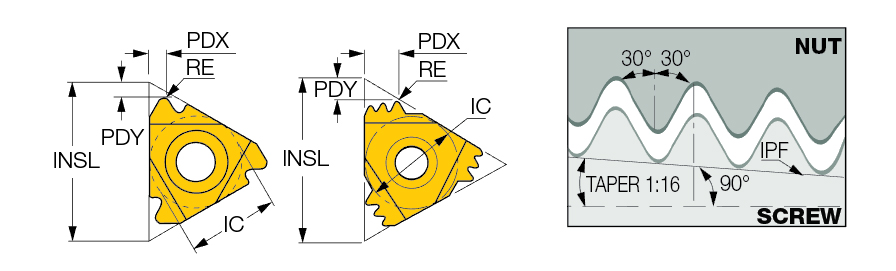

| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 16.49 mm | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 8 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.43 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | APR60 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Threading lay down | | Profile Distance EY (PDY) | 1.1 mm |
Product Features
| Family Description | Internal API - oil thread, round profile (API Spec 5B8-1996) laydown threading inserts. | FamilyName | IR/L-API RD |
| Remarks | For Insert Identification System, click on More Info API Spec 5B8-1996 | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0056
Name

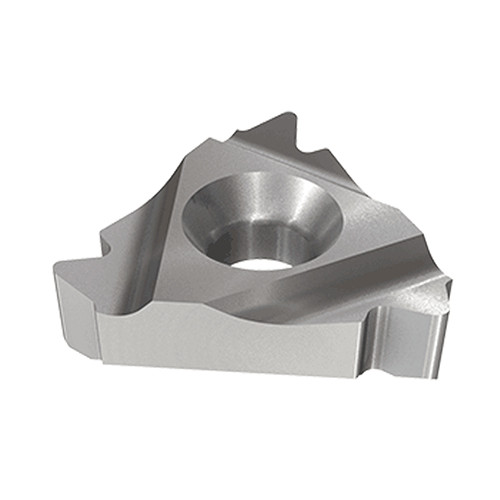

Laydown Threading Indexable Inserts
FamilyName
IR/L-API RD
BrandName
Iscar
