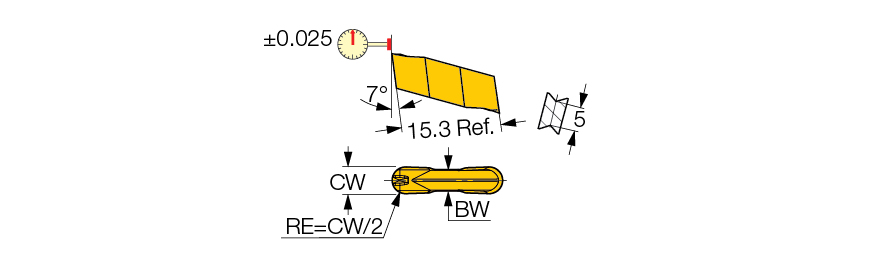

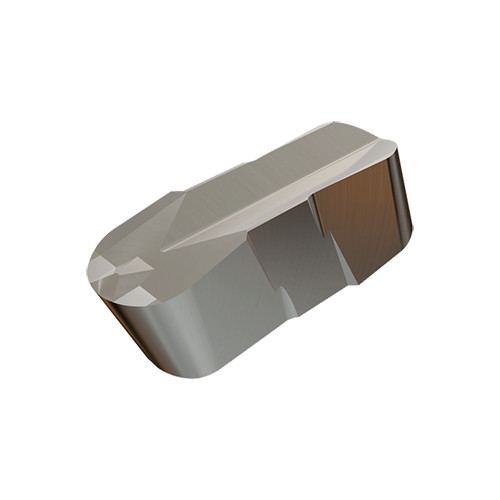

GIP 4.78-2.39 IC8250
| Cutting Width (CW) | 4.78 mm | Application | | Ext. Grooving | Int. Grooving | Side Slotting | |
| Corner Radius (RE) | 2.39 mm | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 11.4 mm | Axial Groove Outside Diameter Minimum (DAXN) | 160 mm |
| Clearance Angle Major (AN) | 7 Degrees | Measurement Type | Metric |
| Insert Length (INSL) | 15.3 mm | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision-ground inserts for grooving and recessing. Double-ended, P-type chipformer. | FamilyName | GIP (full radius) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0016
Name
Groove/Turn Indexable Inserts
FamilyName
GIP (full radius)
BrandName
Iscar
