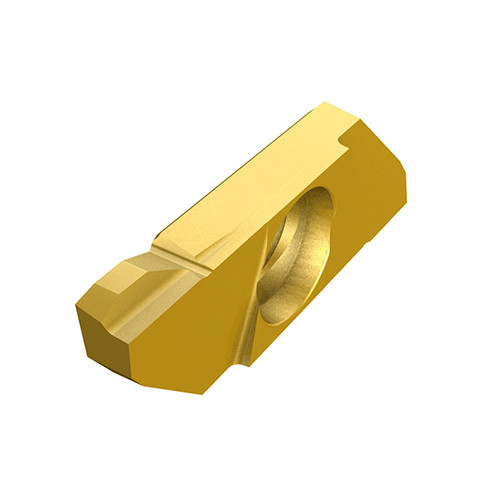

SCIL 22-AL10-25K8 IC1008

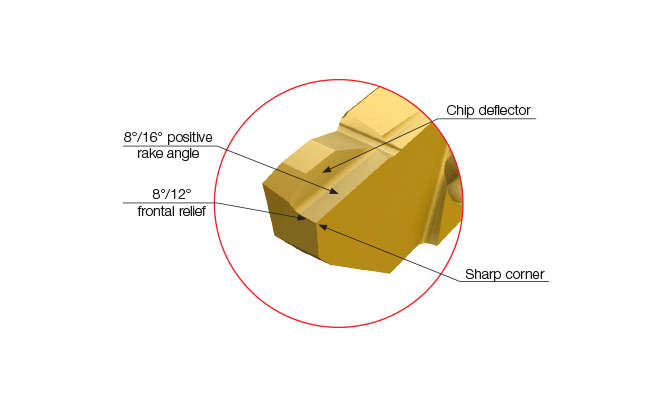

Turning inserts with a front relief angle used on Swiss type automatics and small CNC lathes.

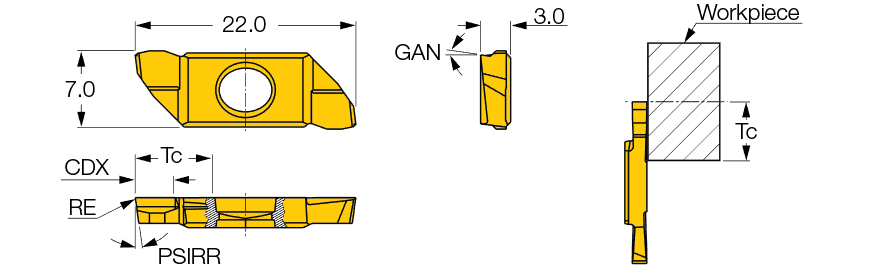

| Corner Radius (RE) | 0.1 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Application | | Ext. Turning | |
| Insert Thickness (S) | 7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 22 mm | Insert Rake Angle (GAN) | 8 Degrees |
| Insert Length (INSL) | 22 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 3.8 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Insert Width (W1) | 3 mm |
| Grade | IC1008 | Unit | M |
Product Features
| Family Description | Turning inserts with a front relief angle used on Swiss type automatics and small CNC lathes. | FamilyName | SCIR/L-22-AR/AL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0068
Name
Parting Off Indexable Inserts
FamilyName
SCIR/L-22-AR/AL
BrandName
Iscar
