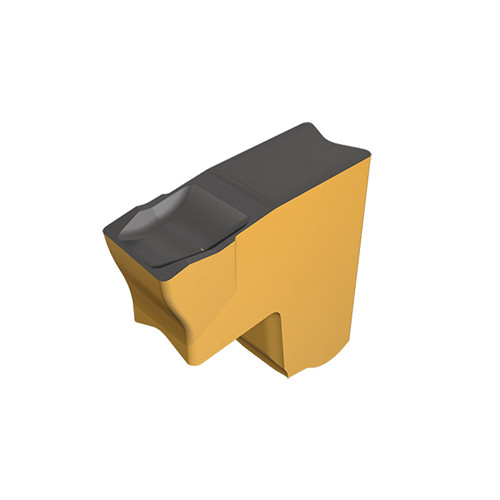

TAG R4C-4D IC808
First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds.

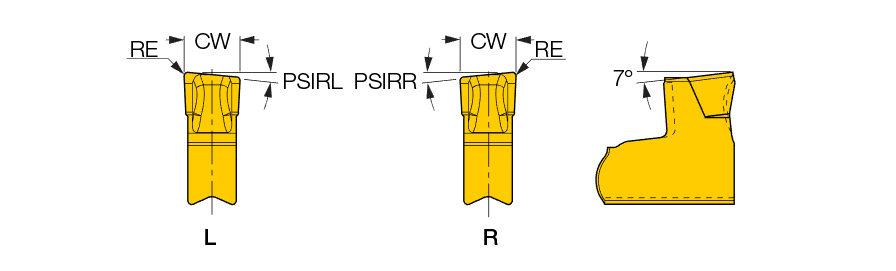

| Cutting Width (CW) | 4.05 mm | Max. Grooving Feed (fg(max)) | 0.2 mm/rev |
| Corner Radius (RE) | 0.24 mm | Min. Grooving Feed (fg(min)) | 0.08 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Grade | IC808 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Application | | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.1 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | FamilyName | TAG R/L-C |
| Remarks | The feed values for grade IC20 should be decreased by 50%. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0032
Name
Parting Off Indexable Inserts
FamilyName
TAG R/L-C
BrandName
Iscar
