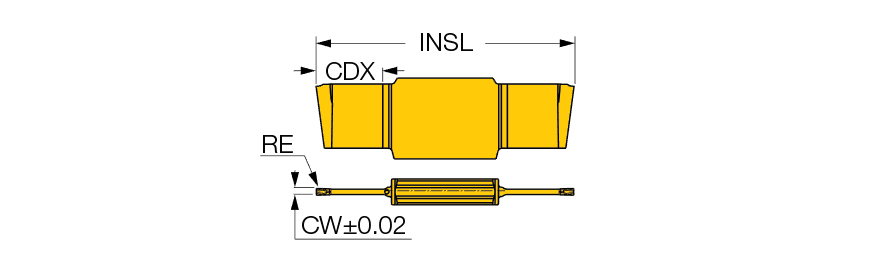

| Cutting Width (CW) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1 mm | Max. Grooving Feed (fg(max)) | 0.08 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Insert Length (INSL) | 38.7 mm | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 10 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Grade | IC1008 | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features

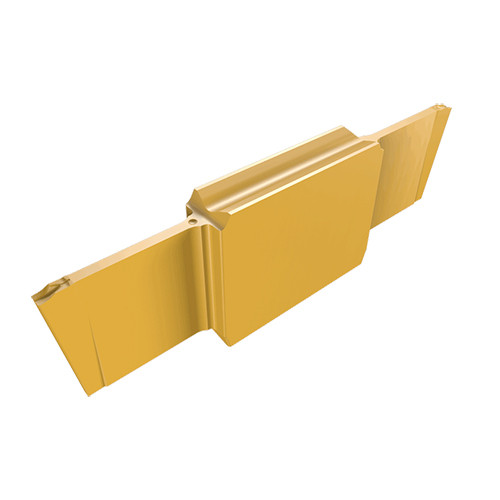

| Family Description | Narrow, material cost saving inserts for grooving and parting of soft materials, tubes, small diameters and thin-walled parts. | FamilyName | BGM N-J |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0182
Name
Parting Off Indexable Inserts
FamilyName
BGM N-J
BrandName
Iscar
