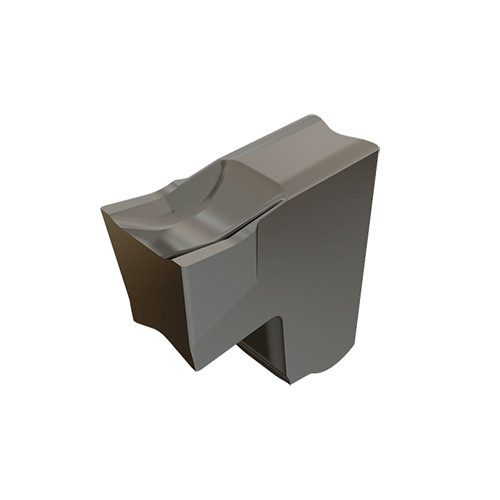

TAG N2A IC20
Parting grooving and slitting, single-ended inserts. Used for machining aluminum.

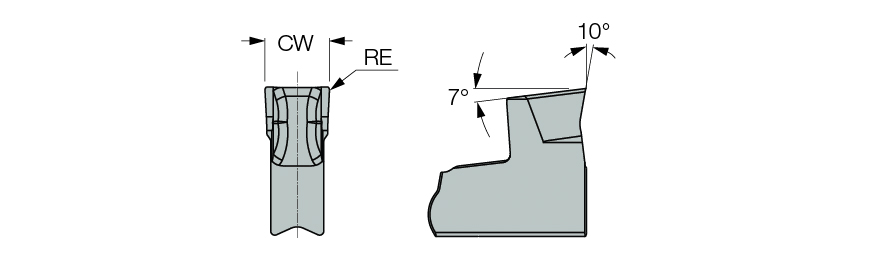

| Cutting Width (CW) | 2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.04 mm | Insert Rake Angle (GAN) | 10 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | A |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | Parting grooving and slitting, single-ended inserts. Used for machining aluminum. | FamilyName | TAG N-A |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0021
Name
Parting Off Indexable Inserts
FamilyName
TAG N-A
BrandName
Iscar
