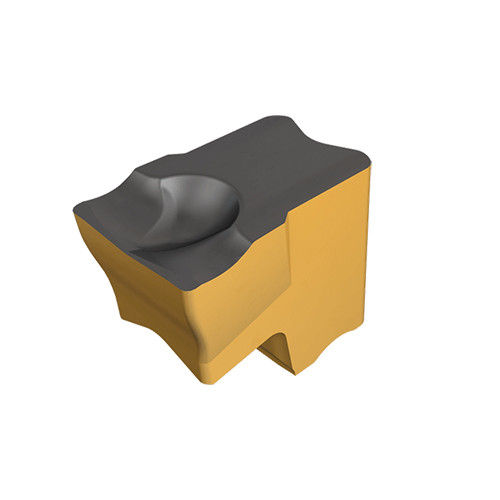

TAG N3J IC908
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.

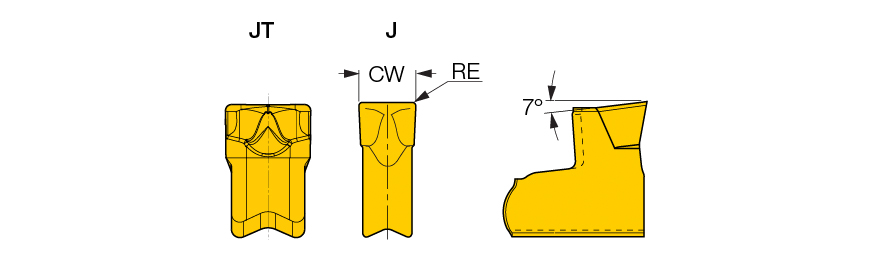

| Cutting Width (CW) | 3.05 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Corner Radius (RE) | 0.2 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Insert Rake Angle (GAN) | 5 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | J |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners. | FamilyName | TAG N-J/JS/JT |
| Remarks | JT chipformer has the basic positive configuration of the J-type and a reinforced negative front edge; most suitable for soft materials at low-to-medium feeds. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0028
Name
Parting Off Indexable Inserts
FamilyName
TAG N-J/JS/JT
BrandName
Iscar
