TAG N4MF IC1030
Basic design of the "C" chipformer with higher deflector and smaller T-land, most suitable in grade IC5400 for general stainless steel applications for medium to high feeds. Suitable also for high alloy steel.

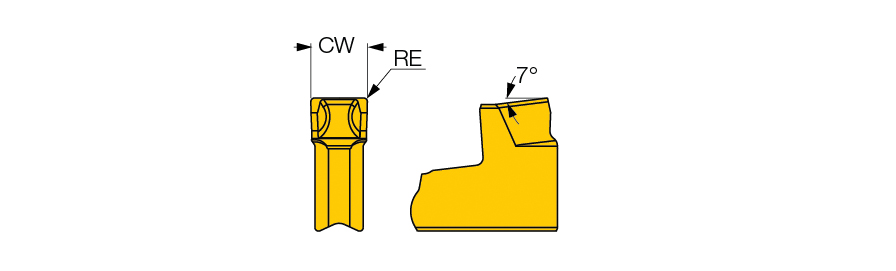

| Cutting Width (CW) | 4 mm | Max. Grooving Feed (fg(max)) | 0.22 mm/rev |
| Corner Radius (RE) | 0.25 mm | Min. Grooving Feed (fg(min)) | 0.07 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Chip Breaker Type | MF |
| Cutting Edge Material | Carbide | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1030 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.05 mm |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Basic design of the "C" chipformer with higher deflector and smaller T-land, most suitable in grade IC5400 for general stainless steel applications for medium to high feeds. Suitable also for high alloy steel. | FamilyName | TAG N-MF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0032
Name
Parting Off Indexable Inserts
FamilyName
TAG N-MF
BrandName
Iscar
