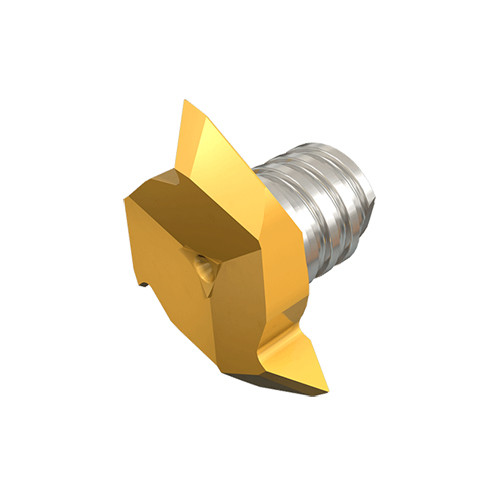

MM TRD22-M60-30P-4T08 IC528

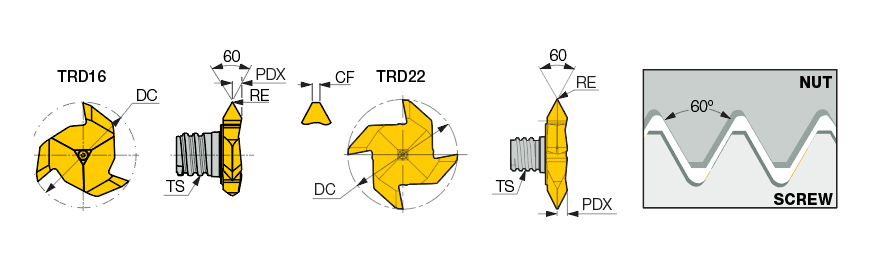

Interchangeable solid carbide milling heads for 60° partial profile thread milling
| Thread Standard | THFT | | Tool Type | Solid carbide thread mills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Metric |
| Coating | TiCN+TiN | Overall Length (OAL) | 13.52 mm |
| Grade | IC528 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | VP60 |
| Standard | ISO 68, DIN 13 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Interchangeable solid carbide milling heads for 60° partial profile thread milling | COO | Israel |
| Remarks | For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Weight per item
0.0245
