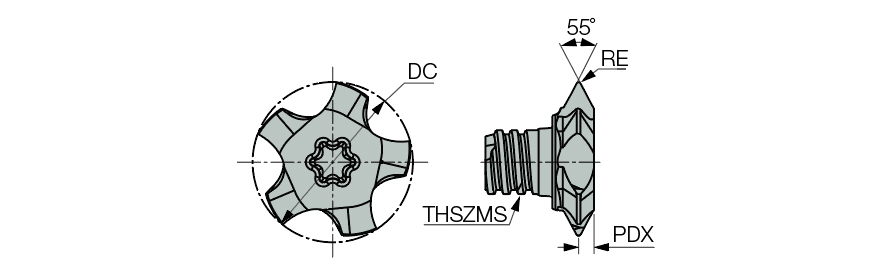

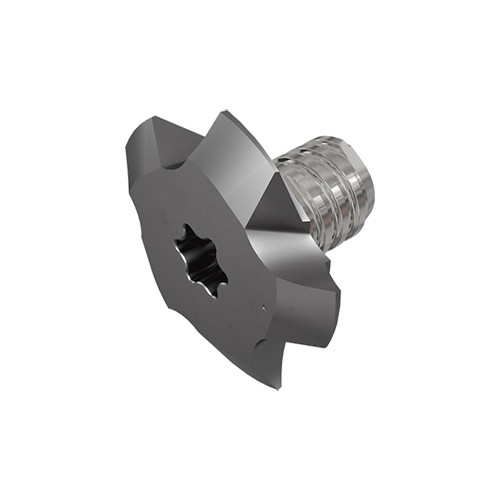

MM TRF20-W55-P6-6T08 IC908
Interchangeable solid carbide milling heads for 55° partial profile thread milling
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | WH55 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | M |
| Standard | DIN/ISO 228, B.S. 84 |
Product Features
| Family Description | Interchangeable solid carbide milling heads for 55° partial profile thread milling | COO | Israel |
| Remarks | For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Weight per item
0.0230
