SD TRD40-M60-8P-SP17 IC908

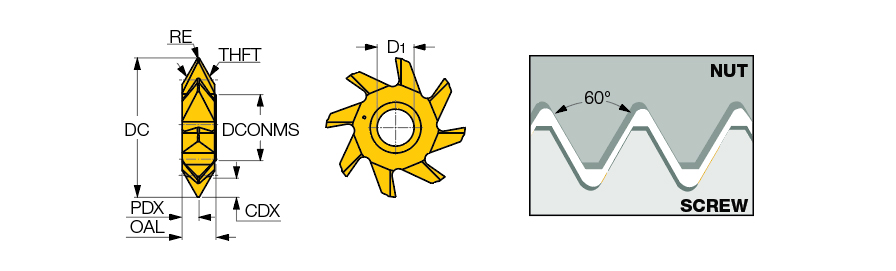

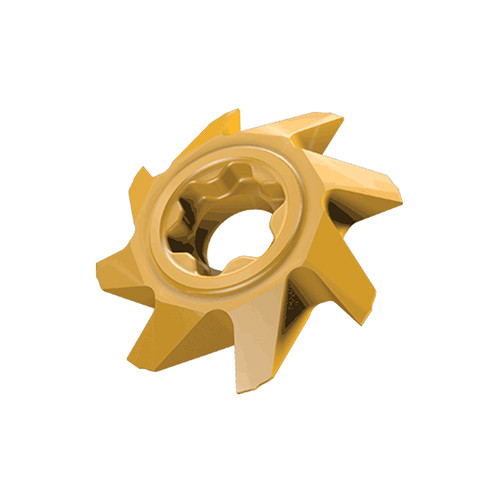

Interchangeable solid carbide heads for 60° partial profile thread milling.
| Thread Standard | THFT | | Functional Length (LF) | 0 mm |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Overall Length (OAL) | 9.5 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | VP60 |
| Cutting Edge Material | Carbide | Unit | M |
| Tool Type | Solid "T" slot cutters |
Product Features
| Family Description | Interchangeable solid carbide heads for 60° partial profile thread milling. | COO | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Weight per item
0.0880
