MT20F14 2.0ISO-MMTT10 IC908
Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread.

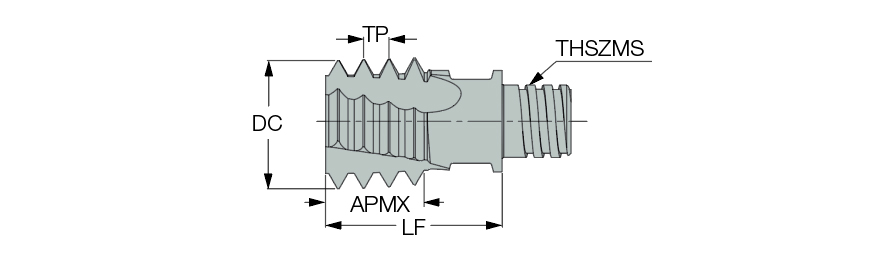

| Thread Standard | MF |THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2 mm | Tool Type | Solid carbide thread mills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Functional Length (LF) | 21 mm |
| Cutting Diameter (DC) | 20 mm | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Overall Length (OAL) | 32.75 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Connection Code Machine Side (CCMS) | MultiMaster |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Carbide milling heads with a threaded (MULTI-MASTER) connection for internal ISO metric thread. | COO | Israel |
| Remarks | Note: Description and dimensions relate to the new products with clamping flats For clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Weight per item
0.0880
