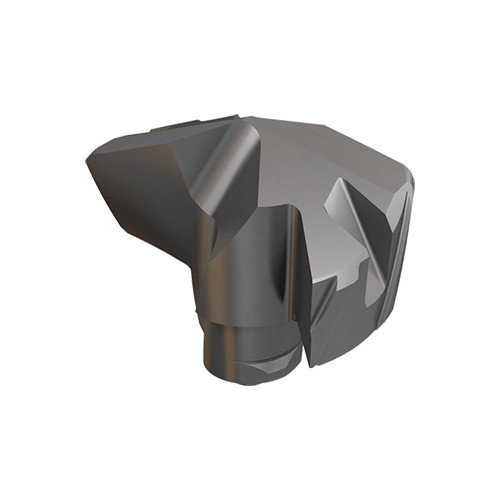

ICP 180-2M IC908
Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra).

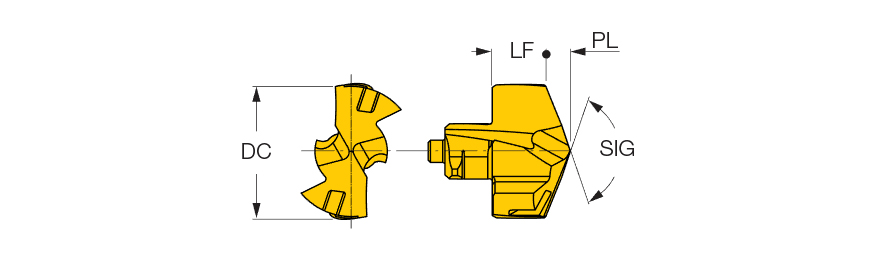

| Cutting Diameter (DC) | 18 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 10.5 mm |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 2.73 mm |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 18.0 | Body Material | Carbide |
| Functional Length (LF) | 7.77 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | COO | Israel |
| Remarks | Provides high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm |
Shipping Info
Weight per item
0.0210
