DSD-IC 169.00-173.99

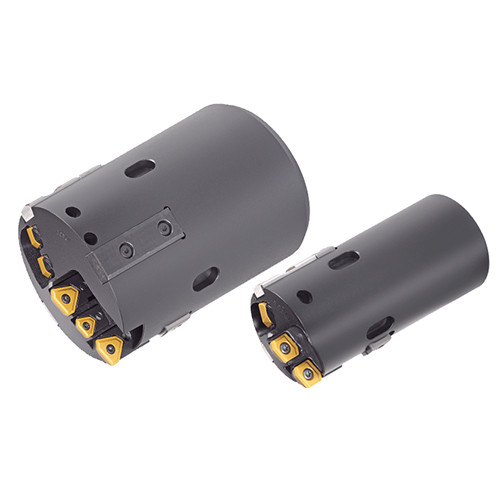

Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

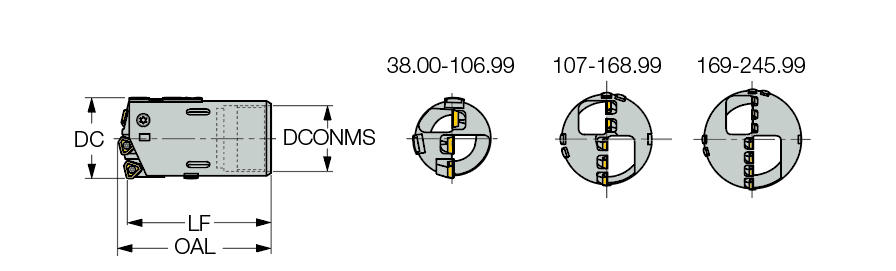

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-O31 |
| Connection Diameter Machine Side (DCONMS) | 151 mm | Cutting Diameter Minimum (DCN) | 169 mm |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 173.99 mm |
| Shank Length (LS) | 85 mm | Measurement Type | Metric |
| Overall Length (OAL) | 211 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Deep single tube drills with internal Single-Start Thread Connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide,click on More Info Ordering example: DSD-IC 67.30 |
