DDD-EC 148.00-159.99

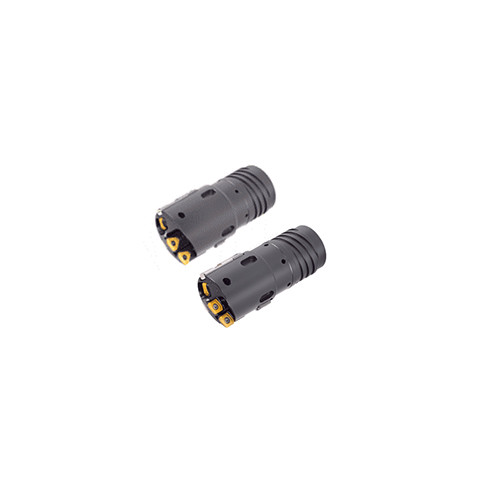

Deep double tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

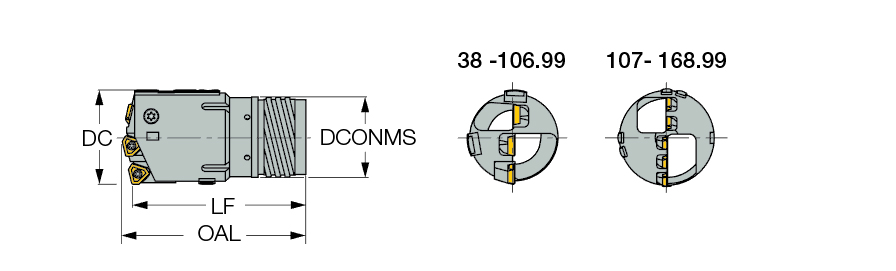

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 148 mm |
| Connection Diameter Machine Side (DCONMS) | 137 mm | Cutting Diameter Maximum (DCX) | 159.99 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 245 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Connection Thread Size (Ts) | TDO-I23 |
Product Features
| Family Description | Deep double tube drills with external 4-start thread connection and cartridges. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on More Info For quotation form and user guide, click on More Info |
