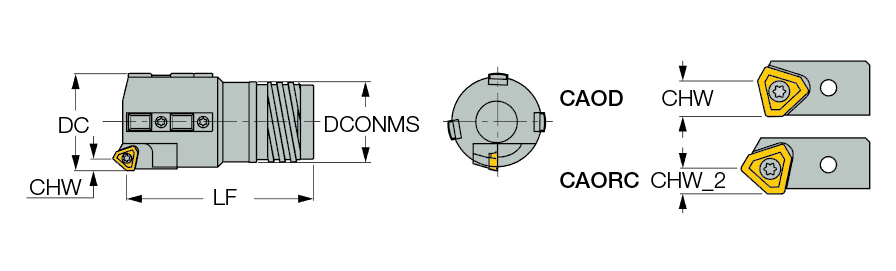

DSC-EC 56.21-60.60

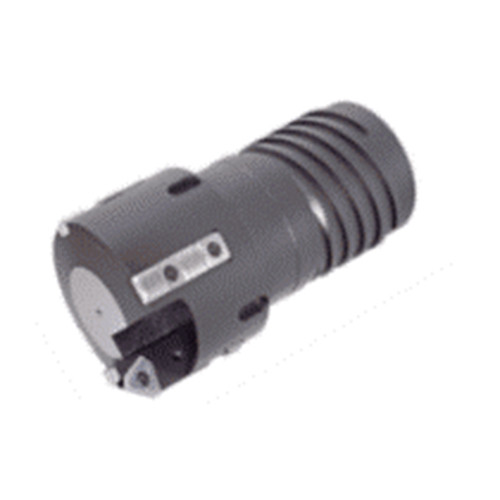

Deep single tube counterbores with through hole, external 4 start thread Connection and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 56.21 mm |
| Connection Diameter Machine Side (DCONMS) | 47 mm | Cutting Diameter Maximum (DCX) | 60.6 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 105 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Connection Thread Size (Ts) | TS-I16 |
Product Features
| Family Description | Deep single tube counterbores with through hole, external 4 start thread Connection and a cartridge. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |

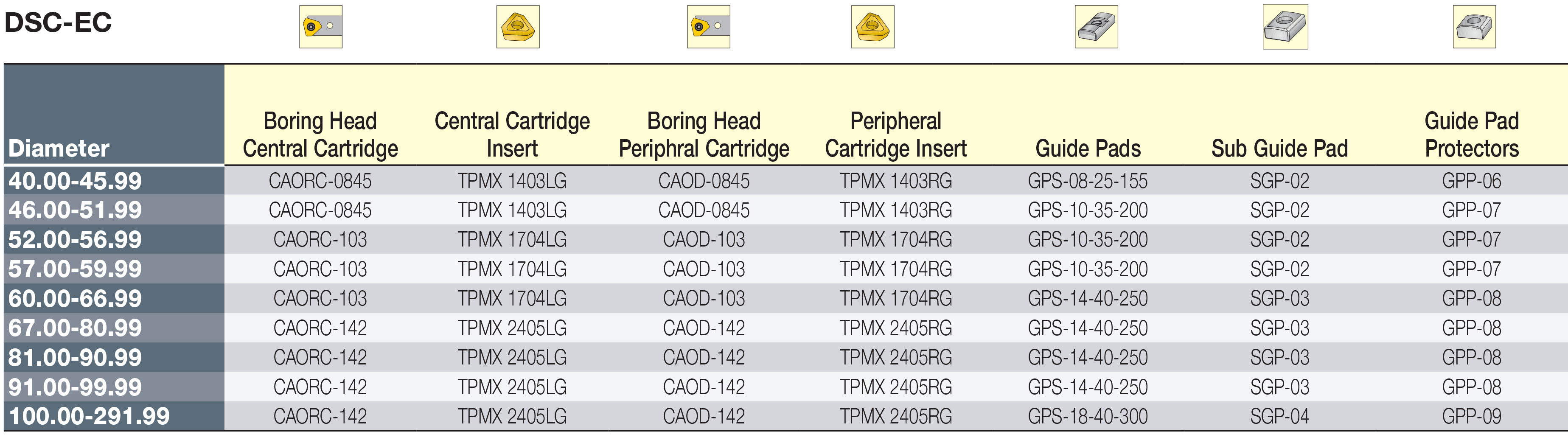

| Remarks | CAOD - Rough boring cartridge (large D.O.C.) CAORC - Precision boring cartridge Supplied with CAOD cartridge, unless ordered differently For quotation form and user guide, click on More Info Ordering example: DSC-EC 87.30 |
