DSTR-IC 282.00-293.99

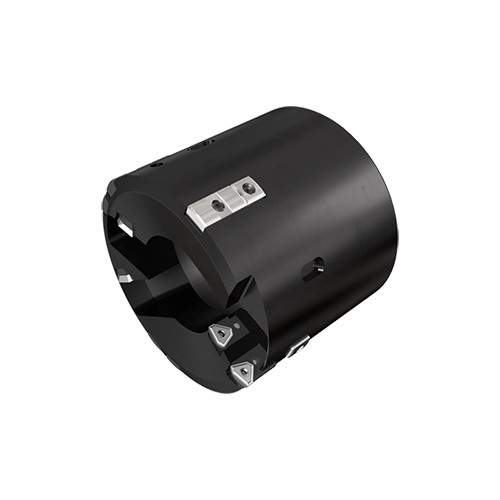

Single tube trepanning drills with inner single start thread connection, cartridges and adjustable diameter (100-306mm dia.)

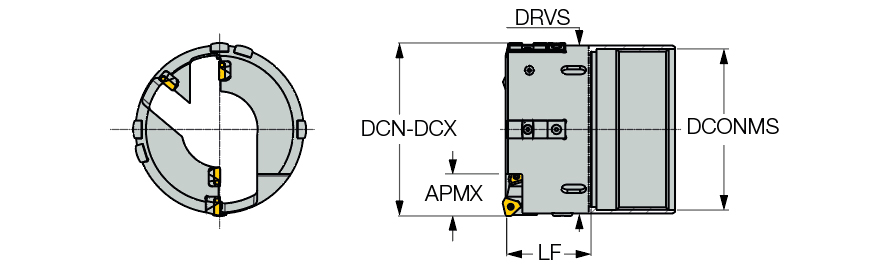

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 282 mm |
| Connection Diameter Machine Side (DCONMS) | 271 mm | Cutting Diameter Maximum (DCX) | 293.99 mm |
| Functional Length (LF) | 209 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-O41 | Unit | M |
Product Features
| Family Description | Single tube trepanning drills with inner single start thread connection, cartridges and adjustable diameter (100-306mm dia.) | COO | Japan |

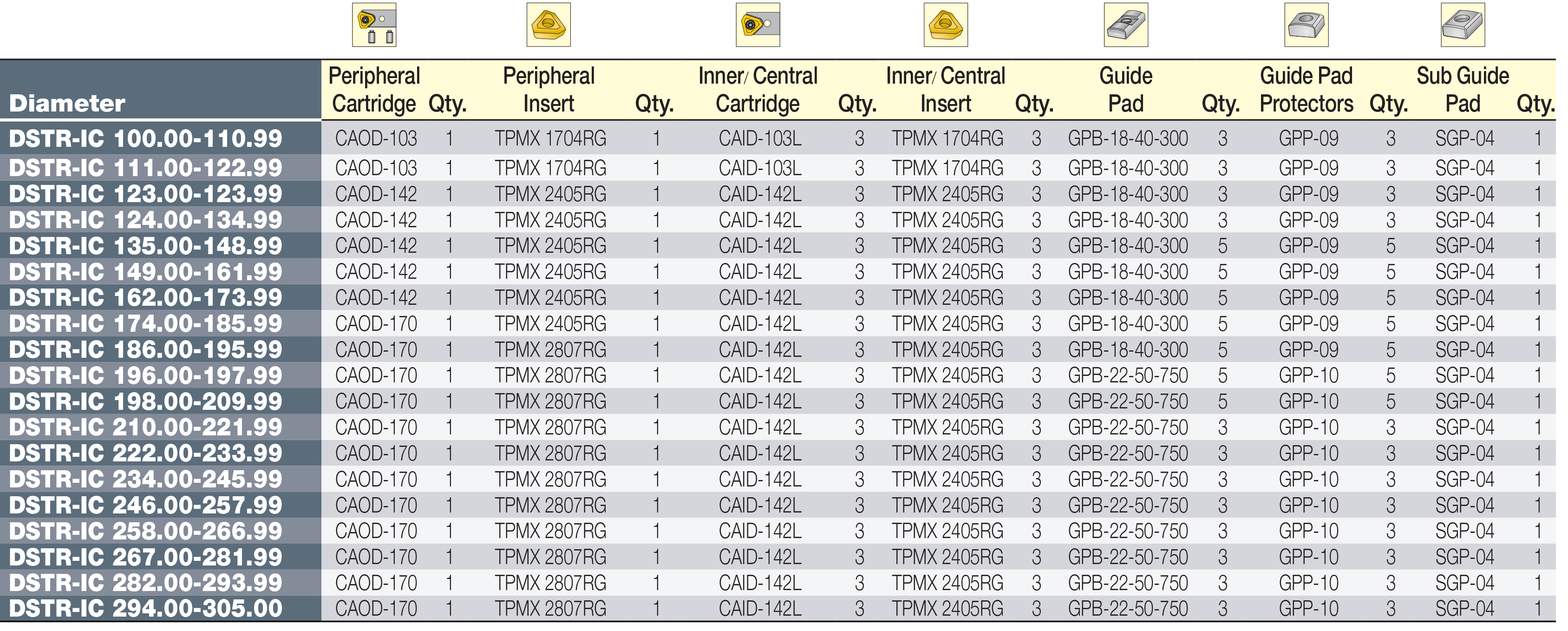

| Remarks | For spare parts and insert information, click on More Info Ordering example: DSTR-IC 120.55 |
