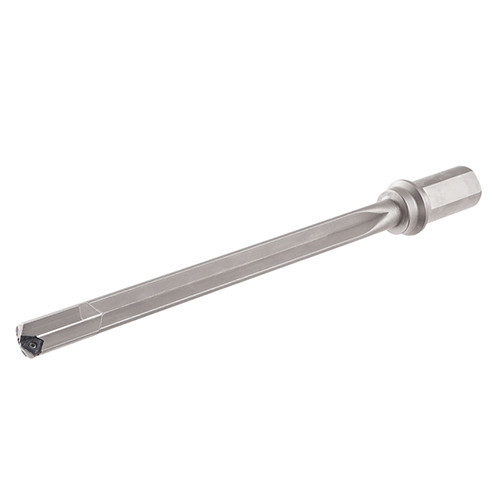

GD-DH 1.000-10D-I1.25-12
Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios.

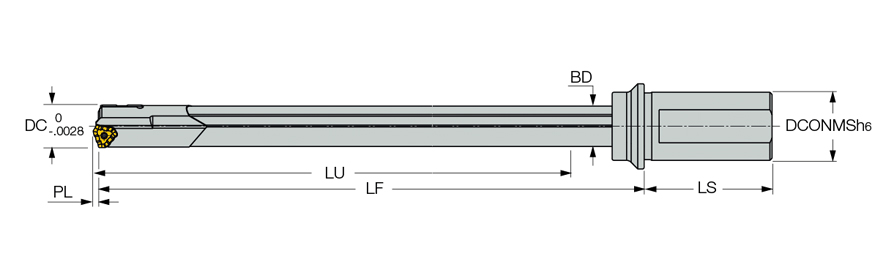

| Cutting Diameter (DC) | 1″ | Overall Length (OAL) | 14.782″ |
| Usable Length (LU) | 10.618″ | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | Gundrills | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Decimal Equivalent | 1″ |
| Shank Length (LS) | 2.36″ | Unit | I |
| Functional Length (LF) | 12.28″ |
Product Features
| Family Description | Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios. | COO | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
2.1429
