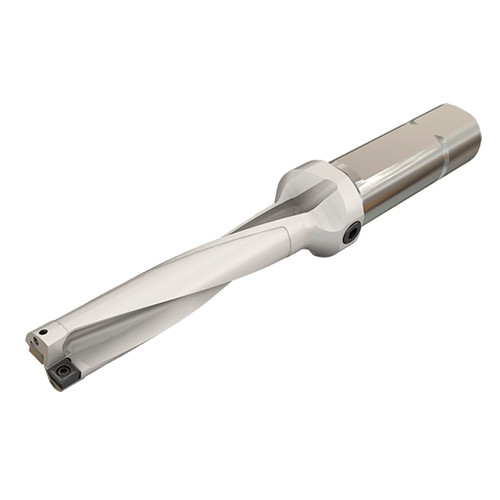

DR0875-4370-100-07-5D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD.
| Cutting Diameter (DC) | 7/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4.37″ | Cutting Diameter Maximum (DCX) | 0.959″ |
| Application | | Drilling | | Flange Diameter (DF) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMX 07 |
| Protruding Length (LPR) | 5.22″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 0.875″ |
| Functional Length (LF) | 5.22″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 8.22″ | Unit | I |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 5xD. | COO | Israel |
| Remarks | Hole tolerance D+.014/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Weight per item
1.2236
