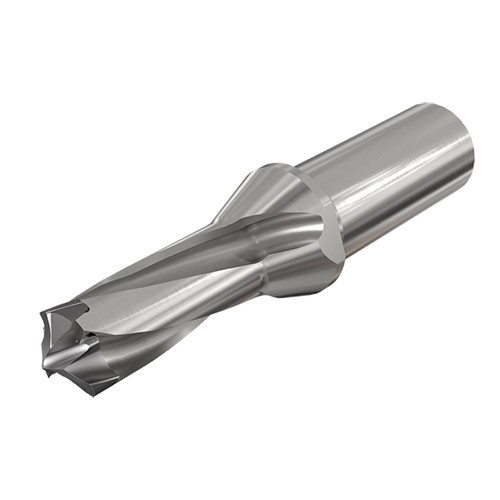

D3N 0906-138-125R-1.5D
Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 1.5xD

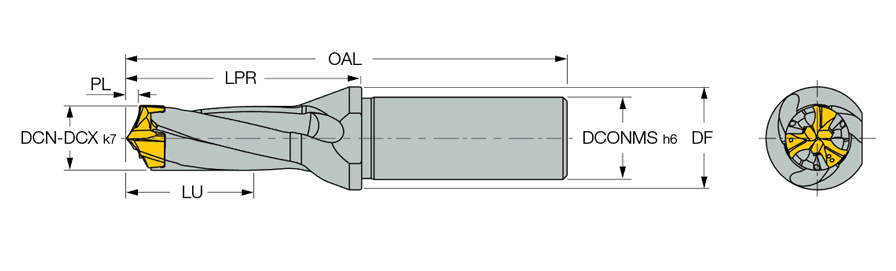

| Cutting Diameter (DC) | 0.906″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.552″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 0906 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.1933″ |
| Insert Seat Size Code (SSC) | 23 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.906″ | Flange Diameter (DF) | 1.575″ |
| Cutting Diameter Maximum (DCX) | 0.941″ | Decimal Equivalent | 0.906″ |
| Protruding Length (LPR) | 3.23″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 5.591″ | Unit | I |
| Shank Length (LS) | 2.36″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 1.5xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.4330
