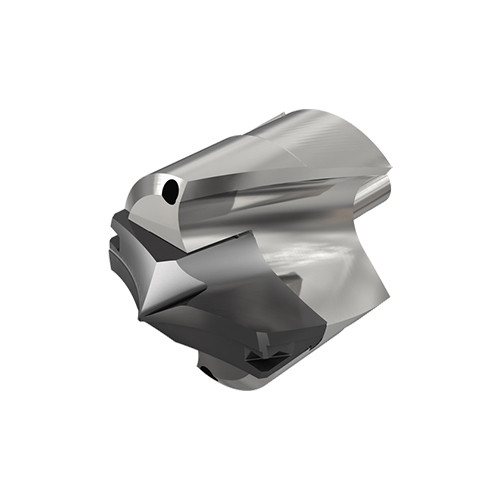

MD-DFN 350 HEAD
Exchangeable drilling heads carry CHAM-IQ-DRILL solid carbide inserts.
| Cutting Diameter (DC) | 35 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6.7 mm | Master Insert Identification (MIID) | HFP 350-IQ |
| Insert Seat Size Code (SSC) | 35.0 | Point Length (PL) | 7.65 mm |
| Cutting Diameter Minimum (DCN) | 35 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 35.9 mm | Unit | M |
| Protruding Length (LPR) | 37.2 mm |
Product Features
| Family Description | Exchangeable drilling heads carry CHAM-IQ-DRILL solid carbide inserts. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.2150
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
