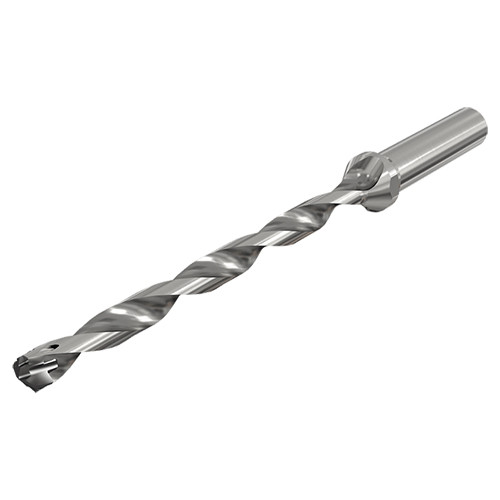

DCN 1220-1464-125R-12D
SUMOCHAM 12xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.

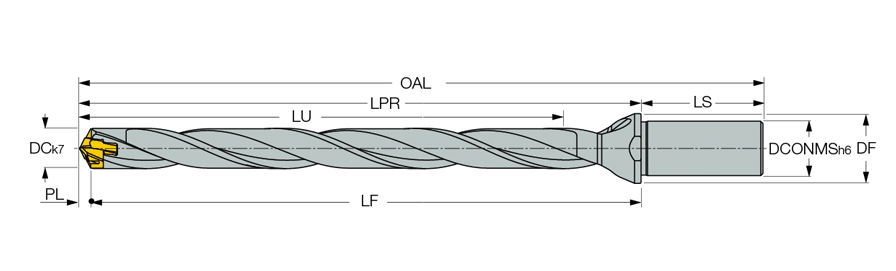

| Cutting Diameter (DC) | 1.22″ | Shank Length (LS) | 2.36″ |
| Usable Length (LU) | 14.833″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 310 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.187″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 31.0 | Flange Diameter (DF) | 1.65″ |
| Cutting Diameter Minimum (DCN) | 1.22″ | Decimal Equivalent | 1.22″ |
| Cutting Diameter Maximum (DCX) | 1.259″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Protruding Length (LPR) | 17.48″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 17.218″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 19.84″ | Unit | I |
Product Features
| Family Description | SUMOCHAM 12xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill The HCP or QCP drilling head may eliminate the need for a pre-hole Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
4.4930
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
