DFN 380-114-32A-3D-IQ

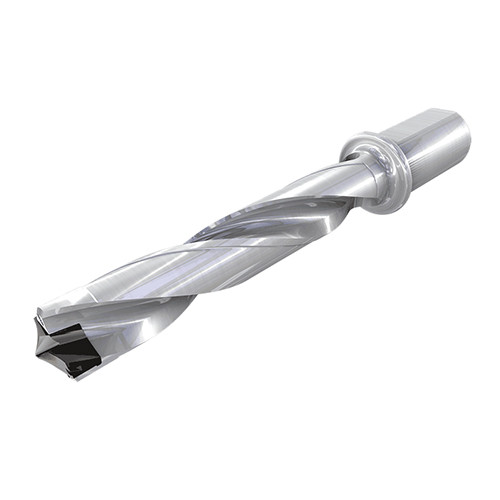

Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 3xD

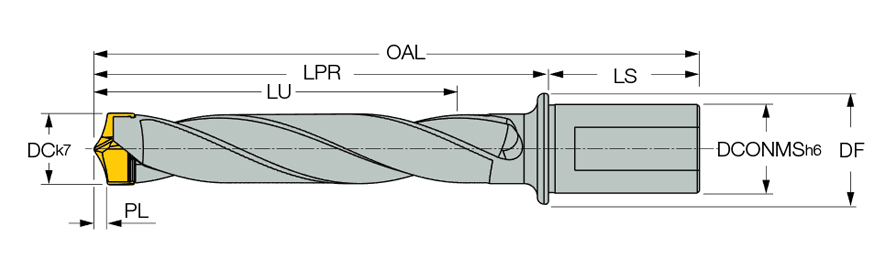

| Cutting Diameter (DC) | 38 mm | Overall Length (OAL) | 217.8 mm |
| Usable Length (LU) | 114 mm | Shank Length (LS) | 60 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | HFP 380 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 8.2 mm |
| Insert Seat Size Code (SSC) | 38.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 38 mm | Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 38.9 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Protruding Length (LPR) | 157.8 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 149.6 mm | Unit | M |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.3040
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
