EB-E4L 12-24/36C12CFH83 IC902

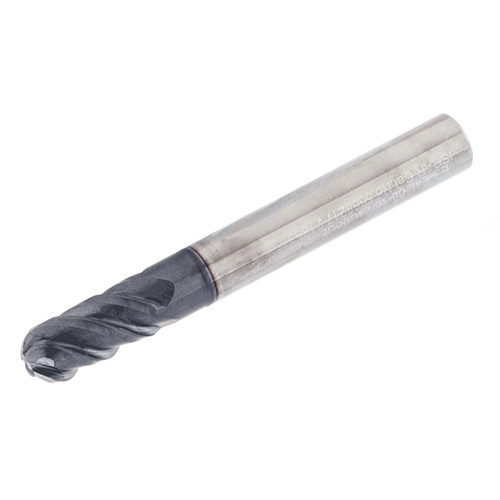

4 flute, 45° helix ball nose endmills with 3xd relieved necks and variable pitch for chatter dampening on hard materials. Full slot milling - up to 2XD.

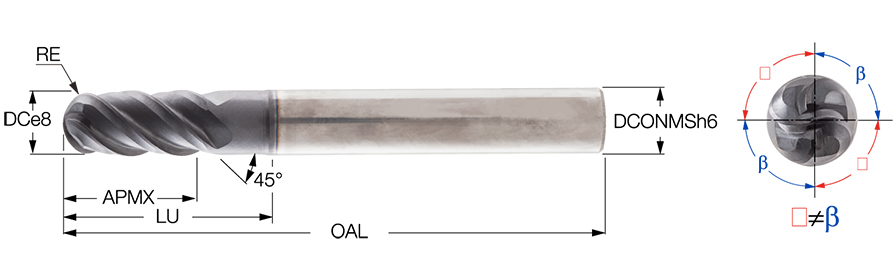

| Cutting Diameter (DC) | 12 mm | Application | | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 24 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 83 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Cutting Edge Material | Carbide | Grade | IC902 |
| Coating | TiAlN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 36 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 4 flute, 45° helix ball nose endmills with 3xd relieved necks and variable pitch for chatter dampening on hard materials. Full slot milling - up to 2XD. | FamilyName | EB-E4L-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1330
Name
Ballnose End Mills
FamilyName
EB-E4L-CF
BrandName
Iscar
